FANUC Robodrill mit FLEX-ROC

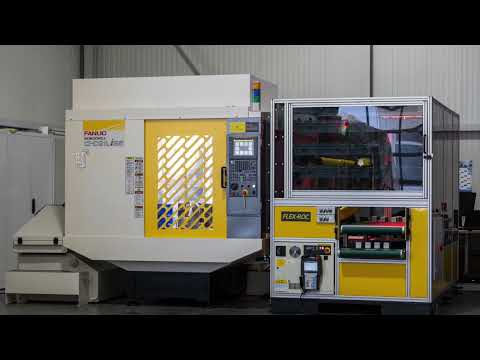

Fanuc Robodrill D21LiB with FLEX-ROC automation cell

Machine technical specifications

Travel distances X-Y-Z: 700x400x330 mm
Main spindle speed: 24,000 rpm
Podpfx Ajzt I Aqecberc
Tool holder: BT30 with Big Plus
Drive power: 26 kW (1 minute)
Tool change time: 1.6 sec (chip to chip)
Connection value: 20 kVA
Machine weight: approx. 2,500 kg

Automation cell technical specifications

Robot: Fanuc M10 ID/L
Automatic gripper changer with 2 changing positions for grippers
Max. part weight: 8 kg
Max. workpiece size: 230 x 150 x 150 mm (adjustments for other sizes are possible)
Part conveyor: 1700 x 580 mm
Additional magazine for 43 tools, resulting in 64 tools in the system
Connection value: 4.5 kVA
Weight: 1,700 kg

System equipment

- 2-axis Kitagawa rotary table
- Renishaw OMP 40 + OTS
- Coolant system with 20 bar internal coolant supply, chip conveyor and band filter
- Workpiece detection via camera
- Automatic workpiece clamping with a centering chuck
