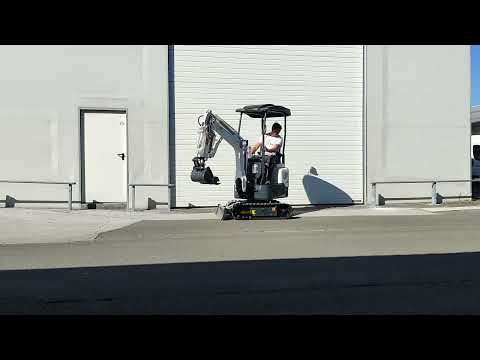

ZoomTech ht10

The advantages of this model are that it has arm cilinder on the top side, the hydraulic hoses are routed in the arm and the possibility of damaging them is minimal. It is equpped with swing arm, hydraulic gripper finger and a hydraulic oil cooler. A two-port valve (A/B) is built into the arm, so you can use your finger and planer at the same time. The engine is Koop single cylinder (euro5).

Parameters:
Model: Zoomtech 10
Weight : 970kg
Digging bucket capacity : 0.025cbm/120kg
Rotation speed: 12RMP
Climbing capacity: 30°
Engine : KOOP 192/Briggs&Stratton
Main Valve : Beifang
Rated power : 7KW
Chjdpfx Aeuplqdsg Sec
Overall length / transport length A/M :4000/2380mm
Overall width : 940mm
Overall height (cab roof) : 2268mm
Total track width: 930mm
Standard track plate width:180mm
Track gauge: 750mm
Wheelbase: 884mm
Track ground length: 962mm
Track length: 1204mm
Minimum ground clearance: 100mm
Tail swing radius : 810mm
Max. Digging height: 2455mm
Max. Dumping height : 1650mm
Max. Digging depth : 1855 mm
Max. Digging radius on ground : 3050mm
Max. digging radius : 3130mm
