5 × 142 متر مكعب صوامع ألومنيوم بقطر 3,500 مم

Zeppelin

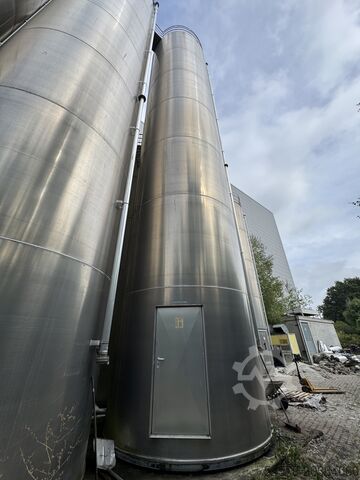

3 x 142 m³ Aluminium Silo (Plastic Granulate Silo)

Technical Data / Dimensions
Available units: 5
Year of manufacture: 2008
Volume: approx. 142,000 liters
Pgjdpfxjxqr E Re Ag Hsg
Type of vessel: Silo
Condition: used
Suitable for foodstuff: no
Design: upright
Internal diameter: approx. 3,500 mm
Cylindrical height: approx. 14,900 mm
Total height: approx. 17,500 mm
Weight: approx. 3,500 kg
Specific gravity of medium: 0.63 t/m³
Operating pressure: non-pressurized
Ground clearance: approx. 770 mm

Material / Construction
Inner shell material: Aluminium
Remarks: Material grade: AlMg3 / AlMgSi3

Support type: support ring/ base frame
Top bottom type: conical head
Slope: approx. 15 %
Bottom type: cone
Cone angle: 60 degrees

Top section:
1 x roof edge railing, height: 1,200 mm
1 x walkway with handrail
2 x crane lugs
1 x manhole DN 600 with vent
1 x connection flange for level measurement
1 x welded socket for high level sensor
1 x flange DN 100 (filling)

Shell/body:
1 x personnel door (approx. 1,800 x 850 mm)
1 x cable protection tube
1 x filling line DN 100 with TW connection

Bottom section:
The silos terminate below in a 60° cone with DN 200 flange and emergency shut-off valve, as well as a mounted suction box.
