Werkzeugmaschinenfabrik Vogtland WV-RTMT 1800

Technical details:

weight of the machine ca.: 4,0 t
machine dimensions LxWxH: 1,8 x 1,8 x 0,9 m

Machine table with 5 indexing tables for multi-side machining

Csdpfju N D S Uox Ag Sehc
Application: Multi-side machining of workpieces in circular transfer machines in one operation on 5 indexing tables with clamping devices.

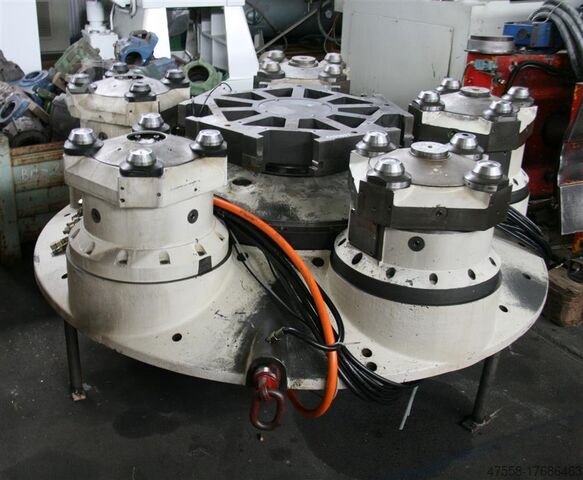

Design: Round, fixed body with 5 round tact tables, which are arranged in the shape of a pentagon, and a centrally mounted turntable.

Description:
Turntable center = type Pentagon, diagonal 830mm; swing diameter Ø 873mm, side length 513mm

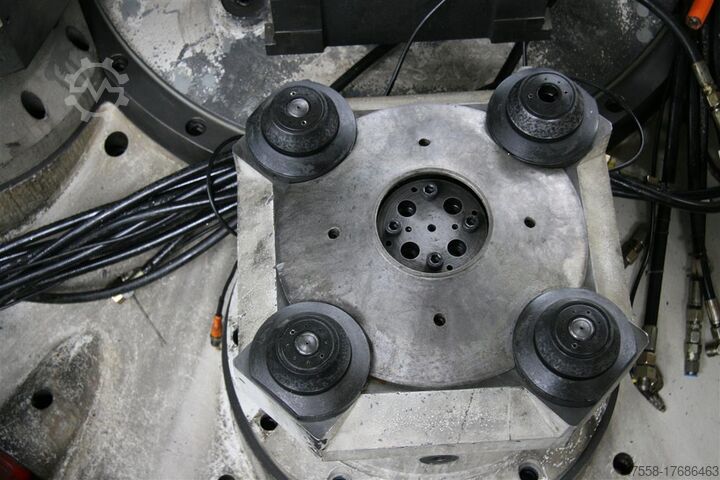

5x rotary indexing table, as a regular pentagon on machine body, center circle Ø = 1280mm, table shape truncated square 380x380mm, clamping device via 4 pieces make Röhm truncated cone clamping devices and 1 central centering flange, 360 ° rotatable, workpiece Ø approx. 730mm

Actuation / drive is hydraulic


*
