آلة قطع المياه النفاثة

Water Jet Sweden NC 4020 D

Water Jet Sweden NCP 4020 D

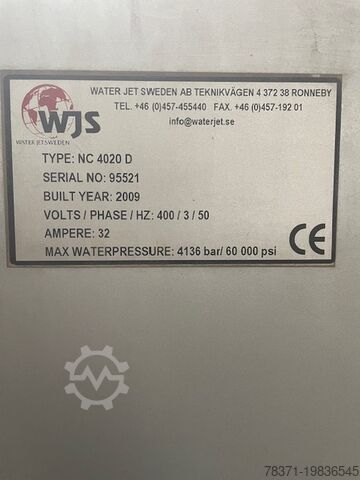

Year of manufacture: 2009

1.1 TECHNICAL DATA

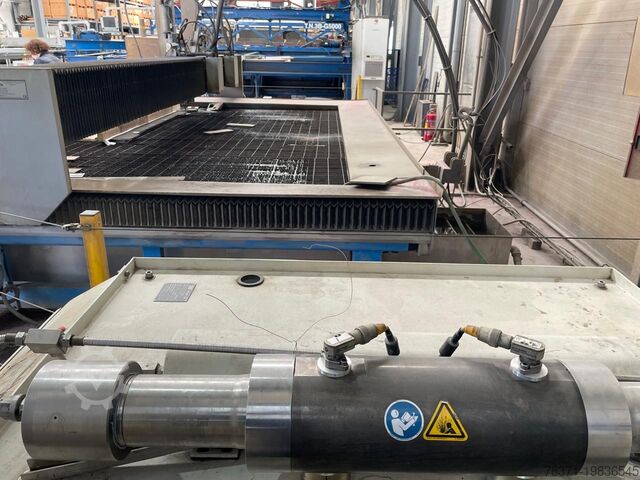

1 x Water Jet Cutting Machine, NC 4020 D
1 x FANUC 310iA control unit
1 x IGEMS CAD/CAM software

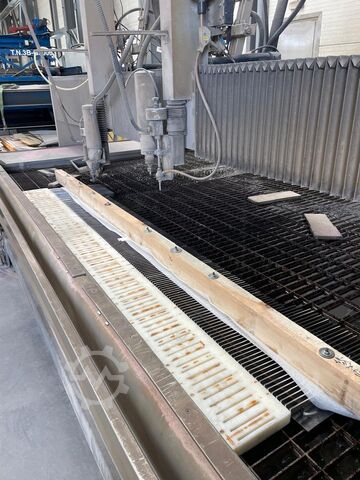

2 x Fixed cutting heads for AWJ abrasive waterjet cutting
2 x SM3000 feed units
1 x KMT Jetline, 50 HP, 3.8 l/min, 4100 bar
1 x Cooling unit & control cabinet
1 x Hose reel with spray nozzle
1 x Tool kit
1 x Machine safety enclosure
1 x PanelOne HMI "EDGECUT" operator interface
1 x Remote control for high-pressure pump
1 x Remote maintenance
2 x Diaphragm pump and extraction units
1 x Waste container, 1000 l
1 x Pressure vessel, 200 l, and 1-ton online abrasive conveyor/online abrasive container
1 x Starter hole drilling unit
1 x MPG, portable manual control unit

1.1.1 MACHINE DATA
Table dimensions (W x D): 4200 x 2275 mm
- Cutting area (W x D): 3980 x 2010 mm
- X-axis travel (2D): 3530 mm
- Y-axis travel (2D): 2010 mm
- Z-axis travel: 250 mm
- Positioning accuracy (X/Y): +/- 0.050 mm/m
- Repeatability (X/Y): +/- 0.025 mm
- Rapid traverse X: 30,000 mm/min
- Rapid traverse Y: 15,000 mm/min
- Rapid traverse Z: 5,000 mm/min
- Minimum distance between nozzles: 450 mm
Fsdpfx Aew Snybsb Usft
- Maximum distance between nozzles: 2010 mm

1.2 CONNECTION DATA
1.2.1 MACHINE CONNECTION
• Electrical connection: 3 x 400 V + PE, 16 A, 50 Hz
• Pneumatic supply volume (incl. pressure vessel): 500 l/min
• Pneumatic supply pressure: min. 6.5 bar

1.2.2 HP PUMP DATA/CONNECTION
HP pump data: - KMT 50, Jetline, 4100 bar
- 37 kW, circuit breaker at 400/50 Hz, 80 A

CAD/CAM software: - IGEMS
