آلة طحن الدليل

WALDRICH COBURG 30-10 S 2525

Technical details:

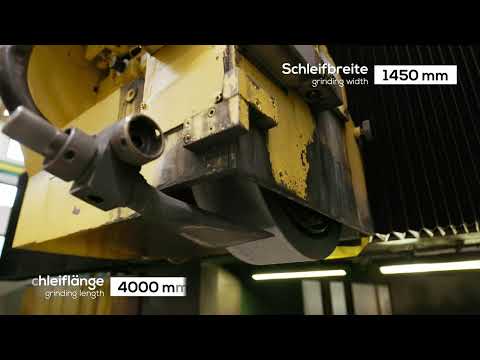

grinding length: 4000 mm
grinding width: 1450 mm
Crodpfx Ajway Arjgqeh
workpiece height: 1250 mm
total power requirement: 40 kW
dimensions of the machine ca.: 12,3 x 6 x 4,8 m
distance between columns: 1460 mm
table surface area: 4000 x 1250 mm
max. workpiece weight: 11.000 kg
cross rail adjustment: 1250 mm
table feed: 1- 45 m/min

.....machine is in top condition for high precision work!

with CNC SIEMENS 840 D
1 universal grinding head, 7,5 kW
swivelling of the grinding spindle +/-110°
grinding wheel dimension 500 x 60 mm
vertical stroke 350 mm
with dressing unit
1 surface grinding head, 22,5 kW
grinding wheel dimension 600 x 100 mm
vertical stroke 150 mm
with dressing unit
6 magnetic plates on the table
diverse grinding wheel flanges

*
