ماكينة تغليف فلو باك فيكتوريا 600 DM

Victoria 600 DM

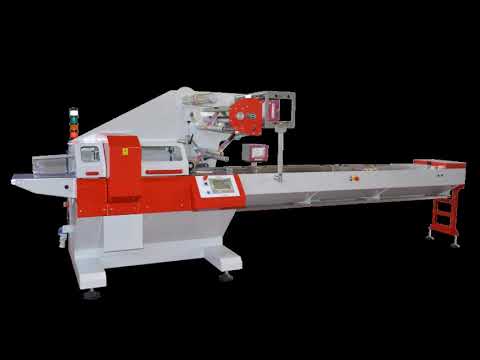

Horizontal Flow-Pack Packaging Machine – Complete Configuration

• Complete horizontal Flow-Pack electronic packaging machine with rotary sealing jaws and top-mounted film reel holder, constructed with a painted steel frame (RAL 9007).
• Cantilever construction: all mechanical transmissions located at the rear, fully separated from the product path.
• Infeed conveyor belt, 2800 mm long, equipped with bridge and AISI 304 stainless steel side guides.
• Pushers and pusher supports made from food-grade approved plastic material.
• Hermetic longitudinal sealing system, achieved by three independent sets of rollers (Ø120 mm each):
• First set: film pulling
• Second set: sealing
• Third set: guidance
• Equipped with pre-heating system and cooling units.
• Transversal sealing jaws, 300 mm wide, fitted with cutting knives.
• Electronic torque limiter and low-pressure system on transversal sealing jaws.
• Drive system with three Schneider Lexium 28 brushless motors:
• One for infeed conveyor
• One for longitudinal sealing rollers
• One for transversal sealing jaws
• Managed via 3 Schneider Lexium 28 digital inverters.
• Automatic centering system for the film reel holder (600 mm opening), cantilever mounted on the upper section.
• Outfeed conveyor belt, 1 meter long, with separate motor and inverter control.
• Safety guards made from impact-resistant plexiglass, equipped with safety micro-switches.
• 7” color touchscreen with memory and recall functions for:
• Machine speed
• Bag length
• Temperature setting
• Jaw deceleration
• Pusher position for progressive product discharge
• Accessory activation
• Program memory: up to 99 recipes
Gsdpfx Agjx Uy Udecott
• Adjustable forming box
• Machine operation: left to right
• Pneumatic components: FESTO
• Manufactured in accordance with CE standards

Technical Specifications

• Power supply: 400 V, 3-phase, T+N
• Packaging speed:
• 80 pcs/min for products 220 mm (L) × 70 mm (W) × 70 mm (H)
• 10 – 120 packs/min (depending on pack length)
• Package dimensions:
• Length: 80 – 600 mm
• Width: 10 – 290 mm
• Height: up to 110 mm
• Machine dimensions (L × W × H): 3800 × 1000 × 1900 mm
• Weight: 600 kg
• Installed power: 3 kW
• Voltage/frequency: 400 V / 50 Hz / 3-phase

Optional Equipment / Additional Features

• Printer interface and preview (signals and control via touch panel) for VIDEOJET 6330
• Belts on longitudinal sealing jaws for better product handling
• Motorized film unwinding
• Film mark photocell
• Pre-installed for Modified Atmosphere Packaging (MAP) with gas pipe and solenoid valve
• U-shaped slit sealing jaws
• Automatic film reel centering
