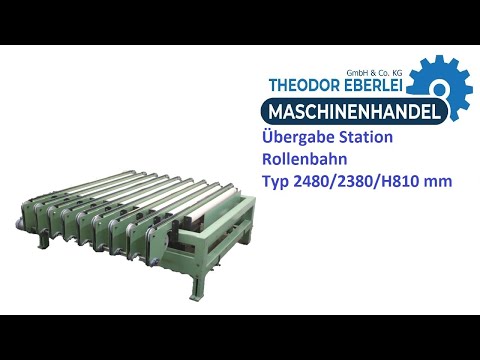

ناقل الأسطوانة لمحطة النقل

Unbekannt 2480/2380/H810 mm

Corner transfer, roller conveyor, roller conveyor, driven roller conveyor, roller conveyor, roller conveyor with puller conveyor

-Transfer station: roller conveyor with conveyor belt, solid base frame, height adjustable
-Speed: roller conveyor 51 m/min / conveyor belt 45 m/min
-Conveyor rollers. Ø86 x 1415 mm rubberized wheels
Hjdpfjrrzfgjx Ab Hjnt
-Roller distance/axle distance: 205 mm
-Belt spacing: 200 mm
-Conveyor belt length: approx. 2290 mm, dimensions see technical photo. drawing
-Drive/gearbox: 2x Nord, see photos of nameplates
-Raising: hydraulic, without drive unit
-Transport dimensions: 2480/2380/H810 mm
-Weight: 1180 kg
