آلة قابلة للطي - هيدروليكية

Strojaren XONM 2000/2A-5

Technical details:

plate width: 2050 mm
plate thickness: 2 mm
distance between columns: 2400 mm
Dedpfxju Ib Dfs Ab Uskg
knife length: 2050 mm
stroke adjustment: oben 250 mm
adjustment of stroke: unten 100 mm
bending angle max.: 180 °
back gauge - adjustable: mit Aufnahmeschienen mm
working pressure: 5,0 MPa
total power requirement: 2,2 kVA
weight of the machine ca.: 2,3 t
dimension machine xH: 3,5 x 1,0 x 2,2 m
dimensions of hydaulic: 0,75 x 0,55 x 0,80 mm

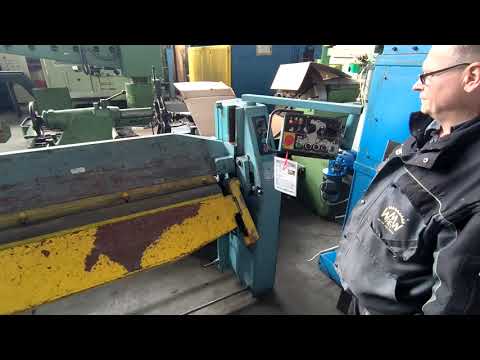

HYDRAULIC FOLDING MACHINE

operation via control panel with boom as well as via foot switch
bending angle: sharp bending = up to 135° with 2mm sheet metal
stroke of the upper beam = 250mm
stroke of the lower beam = 100mm
bending jaw stroke = 100mm
bending gap = 7mm with scale display


*
