آلة تلبيس الحواف مع فريز أولي وتدوير الزوايا

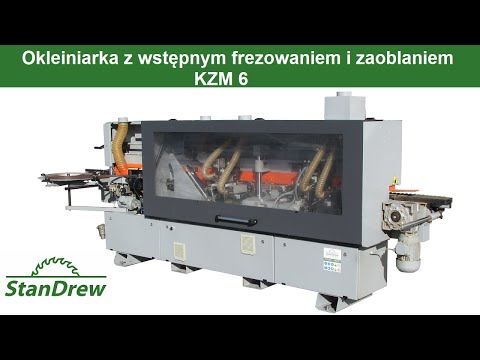

Stomana KZM 6 RTF

- Year of manufacture: 2015
- Made in Bulgaria
- Operating manual and CE certificate available

TECHNICAL SPECIFICATIONS:

– Workpiece height: 8–45 mm
– Minimum workpiece length: 100 mm
– Minimum workpiece width: 100 mm
– Edge thickness: 0.4–3.0 mm
Gjdpfx Agsw H Ryueceil
– Feed speed: 9.5 m/min
– Cutting unit - motor power: 1 x 0.27 kW
– Milling unit: 2 x 0.35 kW
– Milling unit: 12,000 rpm
– Corner rounding unit - minimum workpiece length: 250 mm
– Corner rounding unit - motor power: 1 x 0.35 kW
– Corner rounding unit: 12,000 rpm
– Pre-milling unit: 1 x 1.1, 1 x 0.75 kW
– Pre-milling unit: 12,000 rpm
– Edge cutting unit:
– Glue application unit:
– Polishing unit - motor power: 2 x 0.18 kW
– Polishing unit: 2,800 rpm
– Extendable support with rollers:
– Extraction port diameters: 120 mm
– Compressed air pressure: 6.5 bar
– Total power: 6.7 kW
– Dimensions (L x W x H): 4,130 x 1,220 x 1,470 mm
– Weight: 1,180 kg

تمت ترجمة الإعلان تلقائياً، وقد تكون هنالك بعض الأخطاء في الترجمة.
