ماكينة تدوير نقل بست محطات

Steinel 6 Stationen Rundtakt Sonderbohranlage

Manufacturer: Steinel
Model: 6 Stations
Year of manufacture: 1963
Weight: approx. 2,500 kg

General / Technical Data:

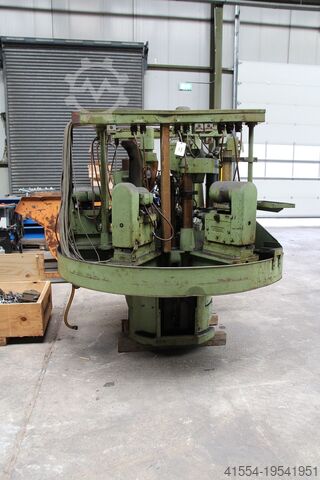

6-station rotary indexing special drilling machine for vertical and horizontal drilling in small workpieces
Drilling units: 7 units
Station 1 – Loading and unloading
Station 2 – Vertical drilling unit
Station 3 – Horizontal drilling unit
Station 4 – Horizontal and vertical drilling unit
Station 5 – Horizontal spindle unit
Station 6 – Horizontal drilling unit and vertical thread-cutting unit
Feed of the drilling units: mechanical feed via quill
Drilling heads: single-spindle
Tool diameter: approx. Ø3 mm to Ø8 mm
Workpiece clamping: manually operated via collet chuck
Hsdpfx Afswyn S Ujnsu
Machine dimensions (W x D x H): approx. Ø 2,000 mm x H = 2,200 mm
Power supply / Connected load: 380 Volt, 50 Hz

Accessories / Special features:
• The machine is designed for large-scale production
• The machine features a sturdy machine table with chip discharge to the underside of the table center with a separate large coolant tank

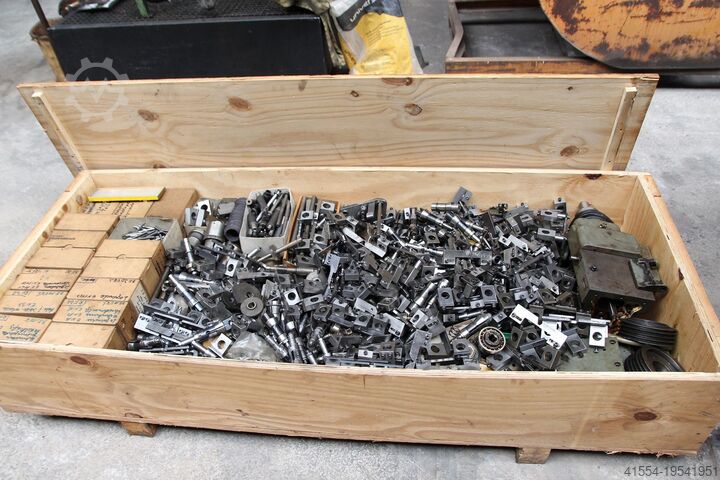

• Extensive set of clamping and auxiliary devices included
• The machine is equipped with a 6-station rotary indexing table
