مفاعل عمودي من الفولاذ المقاوم للصدأ بسعة 15,000 لتر، ضغط داخلي 3.6 بار/تفريغ كامل، غلاف بضغط 5.5 با

SINCLAIR STAINLESS 15,000 Litre

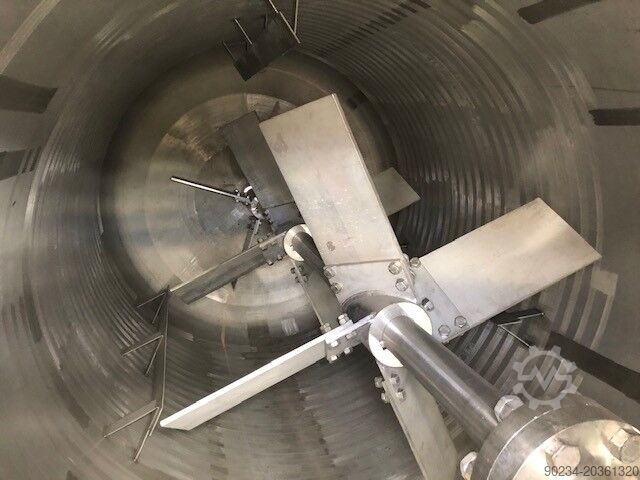

Used Sinclair Stainless Fabrications approximately 15,000 litre 316 stainless steel vertical reactor. Unit measures approximately 2,300 mm diameter x 3,540 mm straight side. Has welded dished top and bottom heads. Internal rated 3.6 bar/full vacuum design pressure at 165 °C. Has external stainless steel limpet coil jacket rated 5.5 bar design pressure at 165 °C. Unit has top-mounted stainless steel agitator with 2-tier 4-blade turbine blades. Driven by 45 kW motor/gearbox with double mechanical seal.

Specifications:
Capacity: 15,000 L
Diameter: 2,300 mm
Straight Side: 3,540 mm
Material of construction: 316 stainless steel
Type Of Heads: welded dished
Lasdpfx Abexqpdksxoh
Internal Pressure: 3.6 bar
Jacket Pressure: 5.5 bar
Internal Temperature: 165°C
Type of stainless: 316
Dimensions: 2300mm diameter x 3540mm straight side
