آلة مجتمعة

SCM / MINIMAX cu 410c

Stable steel-cast iron construction
High-precision format sliding carriage made of anodized aluminum with a travel distance of 2250 mm
Maximum saw blade diameter of 315 mm, saw blade adjustable by 45°
Large fence frame (960 x 600 mm) with an extendable aluminum telescope stop up to 2660 mm

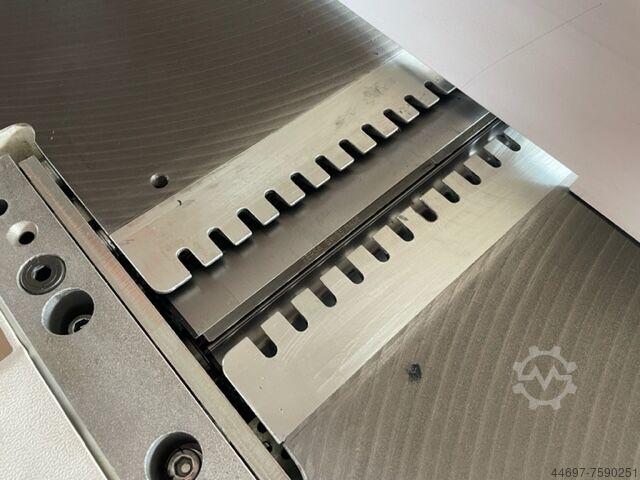

Heavily ribbed planer worktables made of cast iron, annealed and stress-relieved for decades of stability and flatness
Helical steel infeed roller for uniform material feed
Three milling speeds, manually adjustable
Milling spindle with clockwise/counterclockwise rotation
Three independent industrial motors

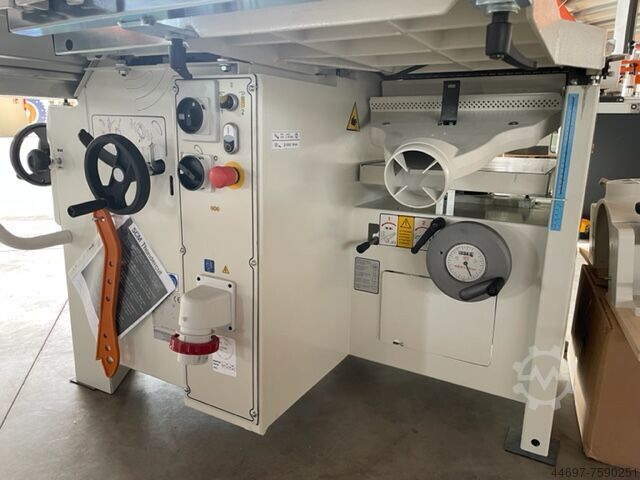

With lockable main switch, motor protection switch, emergency stop switch

Planer table width 410 mm
Planer table length 1810 mm
Maximum chip removal 4 mm
Thickness table length 605 mm
Thickness table width 410 mm
Working height min. 3 mm
Working height max. 230 mm
Feed rate 7 m/min
Maximum chip removal 4 mm
Dust extraction port diameter 4 x 120 mm
Planer cutterhead type TERSA (3 pcs)
Planer cutterhead diameter 72 mm
Speed 5200 min⁻¹
Circular saw fence length 2250 mm
Cutting width with parallel fence 900 mm
Max. crosscut width to the left of the saw blade 2310 mm
Saw blade tilt 90 – 45 °
Max. cutting height at 90° 90 mm
Max. cutting height at 45° 63 mm
Saw blade diameter 315 mm
Saw blade speed 4000 min⁻¹
Sliding carriage and table
Format sliding carriage length 2600 mm
Spindle diameter 30 mm
Gsdpfx Aaeiiynns Dsbr
Speeds 3500/7000/10000 min⁻¹
Milling tool diameter max.
adjustable/non-adjustable 180/210 mm
Power of drive motor 3 x 5.0 kW, 400 V, 50 Hz

Machine weight approx. 560 kg

INCLUDED OPTIONS
- Handwheel with gravity-assisted numerical display for thickness table positioning
- Sliding carriage length 2600 mm
- Professional fences
- "TERSA" planer cutterhead
- Clockwise/counterclockwise rotation of the milling cutter
