خط القطع المتقاطع شبه التلقائي

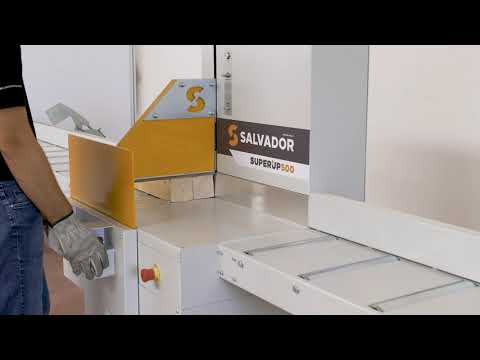

SALVADOR SuperUp 500

Max. cutting section mm. 280x95 / 240x125 / 340x15.
Structure entirely in thick and reinforced painted steel.
Solid ground anchoring system with flanged steel feet for the hole.
Ergonomic two-hand safety cutting controls.
Independent pneumatic adjustments to adapt to different types of work. Compressed air progressive starter in supply.
Cutting speed easily adjustable via pneumatic regulator, on the control panel.
CUTTING UNIT:

Cutting unit with horizontal plane.
Structure in thick and highly robust sheet metal. Ideal motor/blade weight balancing system. Shock absorbers at the end of the stroke. Swing with bearings. Motor anchoring with easy adjustment for perfect 90 degree cuts. Easy maintenance with easy access.
Solid ground anchoring system with adjustable steel feet with perforated flange.
Blade motor power HP=7.5 (5.5 kW).
HM circular blade, diameter mm. 500. Cutting edges Z=108. Hole diameter mm. 35

Adjustable cutting time from 0.5 to 2 sec. Adjustable cutting speed via pneumatic regulator on control panel.

Upper piece locking presser with electro-pneumatic management. External speed and pressure adjustment on control panel. Intelligent presser: Automatic adaptation to wood thickness, thus significantly reducing cutting times
Crsdpfx Ahjwk Himexeh
Presser movement system via new ball bearing slides with double dust protection and automatic lubrication system.

Long-lasting and easily interchangeable aluminum blade guards.

The entire system is equipped with individual and independent pneumatic adjustments, external on control panel, to adapt to the different types of work to be performed.
