لفاف طاولة للفحص

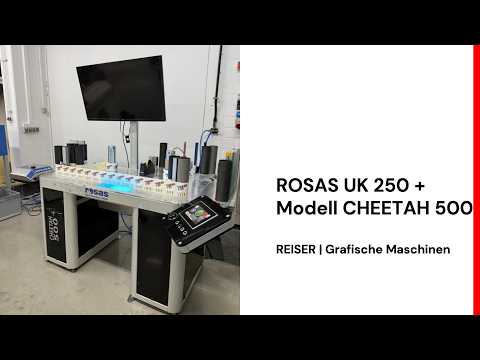

ROSAS UK 250 - Mod. Gepard 500

Technical Data:

• Working width: min. 20 mm, max. 250 mm
• Winding diameter: max. 510 mm
• Core sizes: min. 1” to max. 3” (up to 6” with adapter)
• Compressed air supply: 6 bar
• Web tension: 1–21 N

Equipment:
• Base frame with two servo motors
• 2 pneumatic winding shafts
• Web tension system via dancer roller
• Splice and label defect detection
• Splice table
• Measuring roller
• Counter
• Operation via HMI touchscreen with digital handwheel

Features:
• Bidirectional winding
• Inside and outside winding
• Winding tension control: diameter-dependent or independent
• Fully reproducible winding results
• Integrated job memory (recipe management)
• Counter for labels, running meters and diameter

Nsdpfxjzq U Sys Afnelg
Performance Model Gepard 500
Speed: 500 m/min (depending on material and winding diameter)
Web width: 250 mm
Guide rollers: approx. 80 mm CFRP
Counter: Diameter, running meters, label counter with ultrasonic sensors for “clear-on-clear” labels
Splice detection: Yes
Check for missing labels: Yes
Camera upgrade: Possible

Printing Module of the HR Series
Printing Module: Rea-Jet HR Series, up to 2 print heads, 25.4 mm printing width when supplied with one print head (12.7 mm printing width)
Unwinding shafts: CFRP encoder roller (particularly suitable for thin films) with integrated encoder
Speed: 60 dpi / 300 m/min; 600 dpi / 30 m/min
Front and back printing: Yes
Register accuracy: +/- 0.3 mm
Ink: DCV2
Splice stations: Fully automatic splice stations for uninterrupted printing
Software: Error-free start and stop of the printing process in bidirectional operation.
Antistatic bars: 2 DC antistatic bars (one for the front and one for the back)

Inspection System HQ 5050
General: Base plate, control unit, 40-inch HD LCD monitor, lighting system, high-performance image processing computer

Available Algorithms:
• Print image inspection
• 2D code detection (only with > 4-MP camera), minimum size 10 mm / single element 0.6 mm / QR code / Micro-QR / Micro-PDF
• Barcode capture (only with 4-MP camera), minimum size 0.6 mm / JAN/EAN/UPC / Code39 / Codabar / ITF / Code93 / Code128/GS1-128 / GS1 DataBar / Pharmacode / OCR capture (only with a camera resolution of > 4 MP)
• General distance measurement
• Data capture in CSV file

Lighting:
• Top light dome with glare-free illumination and high-performance LED (32,000 Lux)
• LED flat dome backlight (30,000 Lux) for transmitted light inspection

Camera:
• 5-MP QSXGA color camera
• 2,448 x 2,048 at 200 x 167 mm > 310 dpi
• Min. defect size 0.3 mm
• Approx. 160 m/min (100 x 100 mm label)

Technical data according to user (without guarantee)
