ناقل حلزوني اهتزازي مع ناقل خطي ووحدة تحكم، وعاء اهتزاز، جهاز فرز / مغذي لولبي

RNA Rhein-Nadel Automation SRC-N 250-2L + SLL 400-400 + ESK-N80 / ESG 90

Vibratory bowl feeder / sorting device / bowl feeder / vibratory feeder RNA
Vibratory bowl feeder, sorting device / screw feeder with vibratory feeder for screwdriving technology
Feeding system, feeding device
Manufacturer: RNA Rhein-Nadel Automation GmbH
Type: SRC-N 250-2L
Ser.- No.: 03611 Year of construction: approx. 2000
Cup diameter bottom: 300 mm
Pot diameter top: 350 mm
Inner pot height: approx. 25 mm
Sorting track width: approx. 30 mm
Total height (drive + bowl with sorting track): 380 mm
Vibration frequency: 100 Hz / 6000 min-1
Mains connection: 230 Volt, 50 Hz

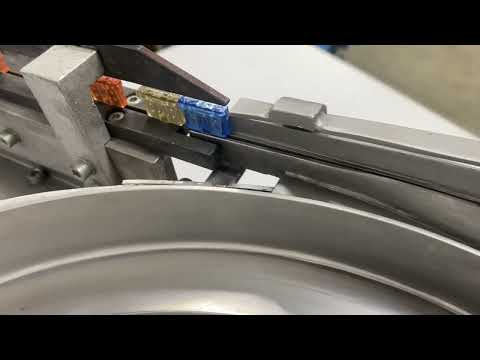

- The conveyor was used for feeding automotive fuses
Space requirement: Ø x H: 420 x 390 mm
Weight of bowl feeder: 52 kg

Linear conveyor / vibratory conveyor / sorting device
Manufacturer: RNA Rhein-Nadel Automation GmbH
Type: SLL 400-400
Ser. No. 00835 Year of construction: approx. 2000
Codpfxouzn Nns Ahxorh
Maximum rail length: 700 mm
Usable weight: approx. 1.5 to 2 kg
Vibration frequency: 100 Hz / 6000 min-1
Mains connection: 220 Volt, 50 Hz
- Swing plate L x W x H 400 x 65 x 12 mm
- Mounted track length 530 mm
- Height with oscillating plate 145 mm
Space requirement: L x W x H: 580 x 120 x 400 mm
Weight of linear feeder: 20 kg

Control unit for vibratory drives, control unit, controller, control system for vibratory conveyors /
sorting device / bowl feeder / vibrating bowl / vibratory feeder
Manufacturer: RNA Rhein-Nadel Automation GmbH
Type: ESK-N80 / ESG 90
Mains connection: 0 ... 208 Veff; (230VAC in motor operation) at 230V mains voltage
0 ... 98Vrms; (115VAC in motor mode) at 115V mains voltage
Output voltage: 0...208 V (rms) adjustable, (230 V mains)
Number of power outputs: 2
Output 1: Circular conveyor, linear conveyor max. 10A adjustable
Output 2: Circular conveyor, linear feeder max. 6 A adjustable
Total load current: 16 Aeff
Sensor inputs: 1
Number of enable inputs: 1 (24V DC)
Sensor supply: 24V DC, max 60 mA
Sensor delay ON: 0 ... 8 sec.
Sensor delay DOWN: 0 ... 8 sec.
Power output connection: Hirschmann 7 pol.
- Two power outputs
- Sensor amplifier with independently adjustable time stages (On / Off)
- Soft start (internally adjustable)
- External enable input 24VDC
Space requirement: L x W x H: 260 x 190 x 140 mm
Control unit weight: 3.6 kg

All devices tested and in good condition
