Rehnen KBA Kantenbearbeitungsautomat

No. 04539

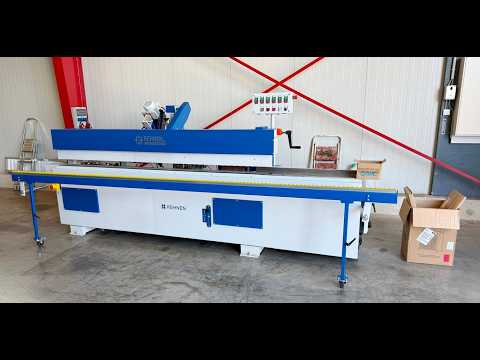

Profile sanding machine / automatic edge processing machine Rehnen KBA

Used, year of construction 2021, low operating hours

Profile sanding machine / automatic edge processing machine for sanding edges, routing profiles and sanding profiles in through-feed operation

Materials to be processed: solid wood, chipboard and MDF
Fields of application: stair construction, furniture production, shopfitting, interior finishing, etc.

Material thickness up to approx. 90 mm, centrally adjustable by handwheel
Variable feed speed up to 6 m/min
Total power 7.3 kW
Pneumatically controlled and tracing profile sanding shoes with standard sanding belts
Longer belt life due to long sanding belts and pneumatically height-adjustable oscillation
High material removal thanks to calibrating roller

- Continuously adjustable oscillating sanding unit (between 30 - 130 mm) / sanding and fine sanding via contact roller and sanding shoe / sanding belt size edge 2000 x 150 mm
- 2 routing units with profile cutters 50 x 10 x 16 mm, Z4 / routing of radii, profiles and chamfers on top and bottom at 12000 rpm / controlled via frequency inverter
- 2 profile sanding units for profile sanding with endless sanding belts via application-controlled, air-cooled steel profile sanding shoe / sanding belt size profile 30 x 1960 mm
- Extendable roller conveyor at the front
- Extraction connection diameter 160 mm
- Workpiece feed via chain plate conveyor

Transport dimensions approx. 4000 x 1200 x 1750 mm LWH
Weight approx. 1000 kg

To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended

Sold as is

Technical specifications, condition description, year of construction and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”

Payment terms: Prices plus VAT, payment before collection or shipment

Delivery terms: ex warehouse
