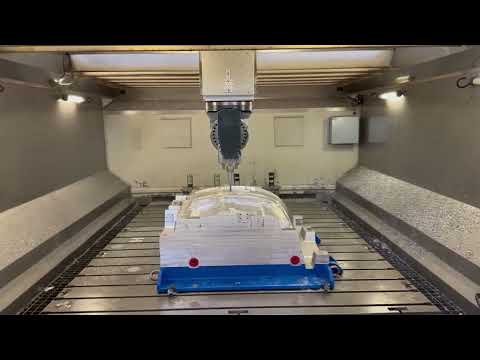

آلة طحن جسرية

PROMAC SHARAV GVT3.5

WORKING RANGE
Longitudinal (X) 4000 mm
Vertical Ram (Y) 1500 mm
Transversal Crossbeam (Z) 3500 mm
Distance between columns 4500 mm
Distance spindle nose table surface 1700 mm
CNC
CNC Heidenhain iTNC530
Measuring system optical scales
SPINDLE
Spindle power 30 Kw
Rotation speed 20,000 Rpm
Torque 85 Nm
Taper HSK63
FEEDS
Iodownc Ruopfx Abbobf
Rapid X 30 m/min
Rapid Y 30 m/min
Rapid Z 30 m/min
Notes Rapid head axes A/C 10 Rpm
ATC
Stations 32
Max. tool length 300 mm
Tool attachment HSK63
WORKING PLANE
Dimensions (LxWxH) 4000x3000 mm
HEAD
Spindle taper HSK63
A-axis +/-110 °
C-axis +/-200 °
Max speed 20000 Rpm
Max power 30 Kw
Coolant CTS
EXTRA
Total machine weight 52,000 Kg
High pressure 15 Bar
Losma filtering system
Piece probe yes
Tool presetting yes
Use and maintenance books Yes
Electrical diagrams Yes
CE certification Yes
Integral fairing + retractable upper cover
Chip conveyor yes
