آلات الرسم FGT - آلة إنهاء الملصقات

PRATI VEGA Plus LF330

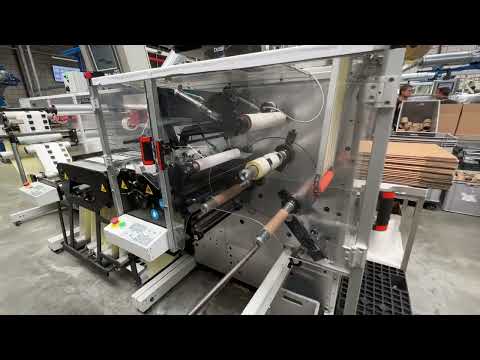

PRATI - VEGA PLUS LF330 CNT

Djdpfx Ajqnvh Teb Uokg

 Brand / model Prati / Vega Plus LF330 CNT (2008)
 Type converting machinery
 Year / SN 2008 / LF 020
 HS Code 8441 1010

Description:

 Slitter
 Cutter
 Rewinder with inspection and label checking.
 Unwind with tension control and single edge guiding.
 Pneumatic bars on the splice tables for changing rolls.
 Color touch screen operation for all functions, programs and jobs.
 For automatic non-stop rewinding (3-spindle turret) and
cutting rolls (including 12 roll knives and a bar with 14 fixed knives)
in register to smaller size rolls.
 Waste suction removal.
 During the process the labels can be counted (numbers and meters) and checked for quality and missing labels with a missing label system.

 Size Min. / max. web width: up 150 - 330 mms
 Min. / max. paper weight: 90 - 160 gsm
 Roll diameter max. unwind: 1000 mms
 Roll diameter max. rewind: 400 mms (280 mm when in use with the 3 shafts turret)
 Shaft diameter unwind: 76 mms
 Shafts diameter rewind: 12 with different sizes
(3×25 mm, 3×40 mm, 3×45 mm, 3×76 mm)
Speed: 0 - 200 m/min
Electrics 400 V, 3 Ph, 28 kW, 50 Hz.



Video link 2:
