Polygonmach PBA200 200 tph asphalt plant, enrobage, asfalto

Empty weight: 240.000 kg
Cargo space capacity: 3.000.000 l
Productivity: 120 tph
Csdpfx Agow Hzbcs Sshc

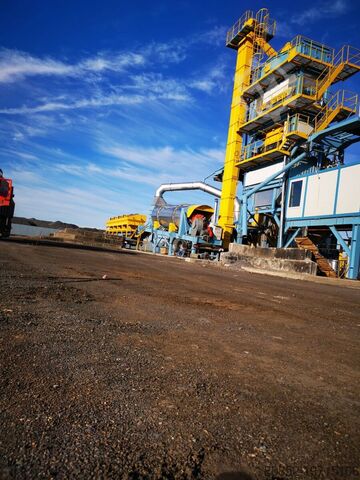

FULL AUTOMATIC TOWER ASPHALT PLANT
1.1 COLD AGGREGATE FFEDING CHASSIS(6*12m3) 6
1.2 Feeding bunkers and dosage conveyor bands 1+1
1.3 Collector and dryer mounted on the feeding conveyor band 1
1.4 STATIONARY CHASSIS 1
1.5 ROTARY DRYER GROUP 1
1.6 Dryer body 1
1.7 Aggregate inlet head 1
1.8 Aggregate outlet head 1
1.9 Burner group (BALTUR) 1SET
1.10 Burner fuel pump 1
1.11 Burner blower fan 1
1.12 Elevator inlet 1
2.1 MIXER CHASSIS GROUP 1
2.2 Asphalt Mixer + Hot Aggregate Elevator 1
2.3 Aggregate weighing scale bunker 1
2.4 Filler Elevator and Weighing scale bunker 1
2.5 Filler Screw Conveyor 1
2.6 Bitumen weighing scale bunker 1
2.7 Mixer bitumen pump 1
2.8 Undersize hot aggregate silo(50T) 3
2.9 Filler stock silo 25 M3 2
2.10 Vibration Screen 1
3 DUST COLLECTING FILTER SET
3.1 Jet-Pulse filter body 1 Set
3.2 Nomex filter bag and cartridges 1 Set
3.3 Dust collector V spiral and bunker 1+1 Set
3.4 Filler silo(25Tons) 2 Set
3.5 Filler Screw Conveyor 2 Set
3.6 Filter absorption fan 1Set
3.7 Dirty gas channel 1 Set
3.8 Chassis group 1 Set
4 BITUMEN STOCK TANK
4.1 50 Ton capacity boiling oil heating isolation bitumen tank(One for PMB)With Stirrer(Vertical) 3 SET
4.2 3 way pneumatic jacket valve group 2 SET
4.3 Mixer bitumen feeding pump 1 SET
4.5 Mixer bitumen weighing scale feeding pipe line 1 SET
4.6 Bitumen transfer pump 1 SET
4.7 Double wall bitumen pipe installations 1 SET
4.8 50 Ton capacity boiling oil heating isolation bitumen tank 1 SET
4.9 3 way pneumatic jacket valve group 2 SET
5 FUEL AND THERMAK GENERATOR CHASSIS GROUP
5.1 1.000.000 kcal/h capacity Thermal oil generator 1 SET
5.2 Boiling oil heating boiler 1 SET
5.3 Boiling oil circulation pump 1 SET
5.4 Fuel replenishing pump 1 SET
5.5 Fueling pump 1 SET
5.6 Automation-Control Cabin-Software-Compressor 1 SET
6 Granulator Feeder(Fiber Feeding with fan drive) 1 SET
7. Col Asphalt Recycling System(5m3 Hopper Feeder,500x22000mm Belt Conveyor,800x4000mm Belt Conveyor with Weighing System) 1 SET
8. Cladding(3 mm Deck Sheet on 50x50 Box Profile Coating) for Aggregate Hopper and Mixer Floor 1 SET
9. Real Time Gas Emission Measuring and Monitoring System(Integrated with PLC and Plant Automation)(Obserable by internet Connection) 1 SET
10. Dust Monitor PCE-PQC 23US Incl. Calibration Certificate 1 SET
