آلة قطع ليزرية للأنابيب والبروفيلات

PFEIFER technology & innovation Plauen D skyTUBE Pro 6500 3D RohrLaseranlage 6kW

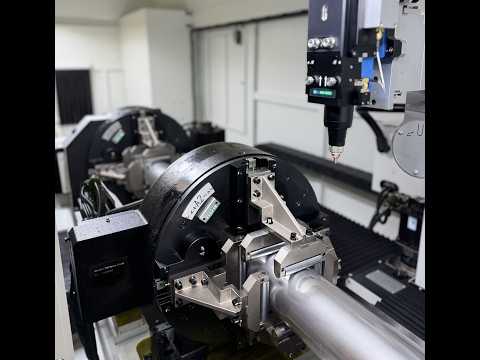

PFEIFER technology skyTUBE Pro 6500 X3 – Profile and Tube Laser Centre 6500 x 15–160 mm with bevel cutting up to 50°
skytube-pro-6500 X3 Profile and Tube Laser | Fiber Laser Metal Cutting for fast material change with up to 6kW — the smart and efficient tube laser processing solution for your production! Designed for round tubes, square tubes, rectangular tubes, open profiles, and special profiles. This laser cutting machine delivers maximum productivity, especially during production changeovers. The task: fiber laser up to 6kW for a wide range of metalworking applications.

Unmatched Laser Cutting Performance
High axis speeds and accelerations, paired with a stable mechanical structure, provide excellent cutting performance and accuracy.
The tube and profile laser processing machine for production — space-saving and simply smart! Innovative solutions 100% made in Saxony!

Tubes and profiles from 15 x 15 to 160 x 160 mm
3D cutting with efficient fiber laser technology

The semi-automatic 6-fold profile tube loading chain system enables fast job changeovers. With the optional bundle loader, you can work completely independently.

Bevel Cutting
A function that changes everything. With our machine’s ability to swivel its cutting head up to 50° on an additional fifth axis, we address one of the biggest challenges in modern profile machining. If the laser beam always strikes the tube perpendicular to the surface, the cut edge will be elliptical. Swiveling the tube laser’s cutting head, combined with the feed axis, enables true bevel cutting.
Dksdpoyh A Nyjfx Addoh

With the skyTUBE Laser, you are always on the safe side!
The skyTUBE Pro is a class 1 laser system — there is no risk of exposure to laser radiation or reflections during operation. For all our laser systems, safety and compliance with the highest standards and regulations are paramount.

Technical Features:
· Closed industrial housing, class 1 or optionally class 4 laser
· Working area, tube cutting system/clamping system: uniform tubes 15 to 160 mm, rectangular tubes 15 x 15 – 110 mm
· Working area on tube X 6500 Y ±100 Z 150 A ±360° U ±50°
· Automatic material feeding: up to 6 x 160 mm profiles, 3500–7000 mm lengths
· Automatic material unloading system for profile sections, design matched to profile lengths
· Z drive system: ball screw axis system with PTI SVZ system
· X/Y drive system: linear axis system with PTI AC-SERVO system
· Productive cutting speed: up to 50 m/min depending on material and laser combination (1.4G)
· Software resolution: up to 2500 DPI
· Repeatability: ±0.03 mm

· Maximum footprint (W x D x H): 11,600 mm x 2,830 mm x 2,100 mm + unloading system, depending on required profile cut length. With standard version and 4.5 m automatic unloading, the total length is approx. 14,800 mm.
