غسالة منصات نقالة من الفولاذ المقاوم للصدأ

NAWI

The washing machine features two cycles: main wash and rinse.

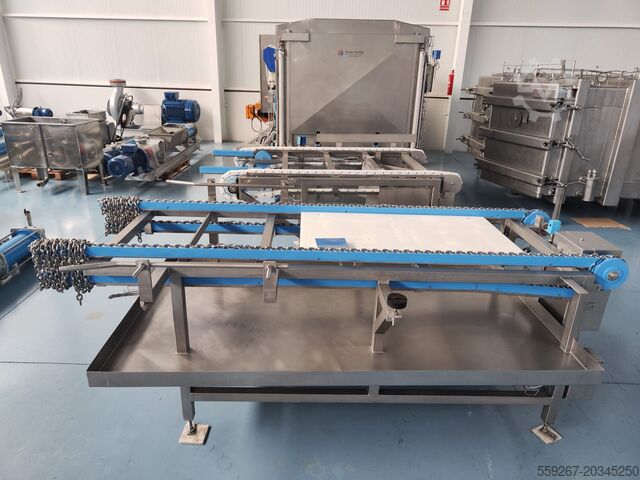

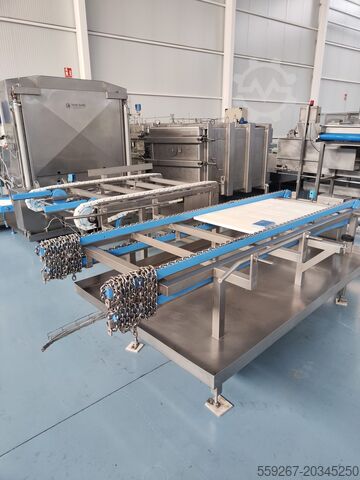

This washer is equipped with one laundry compartment utilizing a circulation pump spray system and a rinse section. Containers requiring cleaning are processed via a chain conveyor that feeds them through the compartment. During the main wash cycle, wash water is drawn from the pumping tank by a centrifugal pump and delivered through a piping and spray system over the container, ensuring thorough internal cleaning.

Disinfection can also be achieved either by heating the water above 82°C or by dosing disinfectant into the rinse water. The wash water is heated via a central heating system (95/80ºC, supplied externally) and tightly controlled to within 0.1ºC by a digital temperature controller. The intensity depends on contamination levels.

Excess fats and proteins are removed by means of the pump using the overflow principle.

TECHNICAL SPECIFICATIONS:
The following specifications pertain to the container/pallet washer:

Dimensions: 2900 x 2300 x 3100 mm
Weight: 1500 kg
Infeed height: 1000 mm
Bath capacity: approx. 950 liters

Conveyor: double-chain conveyor
Spray nozzle drive: 0.25 kW, 33 rpm
Kdjdpfx Aoxp Rqcobxeu
Pump motor: 15 kW
Pump capacity: approx. 1000 l/min at 6.2 bar
Electrical connection: 230/400 V, 3-phase, 50 Hz
Pump material: Stainless steel 304

Heating: Central heating 95°-80°, 65 kW
Main wash temperature: 50° - 55°C
Compressed air: 6 bar, filtered to 50 μm min.

Operational Limits:
- Maximum container/pallet dimensions: 1200 x 1000 x 790 mm
- Throughput: ± 20 containers/pallets per hour (Output varies depending on container size)

Includes 2 conveyor belts:
- 2700 mm x 1500 mm x 850 mm (LxWxH)
- 2750 mm x 1350 mm x 850 mm (LxWxH)
Speed: 14 m/min
Connection: 400 V / 3-phase / 50 Hz
Drive power: 0.55 kW
