مخرطة ثنائية المغازل مع محور Y مزدوج من نوع ناكامورا

Nakamura-Tome WY-250 SUPER MILL

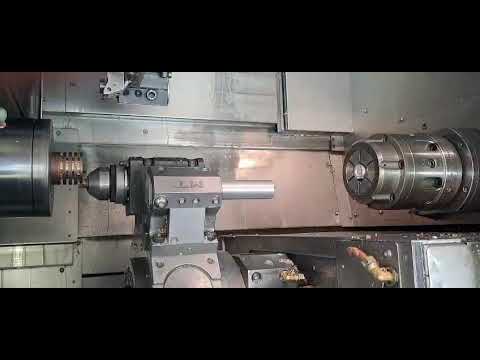

NAKAMURA WY250 SUPERMILL LATHE, YEAR 2007, OPERATIONAL, WITH DOUBLE Y-AXIS
- FANUC 31iA2 CNC control
- Main spindle bar capacity: 65mm, power: 18 kW, ASA 6, 4500 RPM
- Sub-spindle bar capacity: 51mm, power: 11 kW, ASA 5, 5000 RPM
- Live tool power: 7 kW with 40 Nm torque on both turrets (65mm throat, SUPERMILL)
- Y-axis on both turrets (Y-stroke upper +50/-50 mm; Y-stroke lower +20/-50 mm)
- Part catcher type G
- Distance between spindle noses: 870 mm
- Maximum turning diameter: 225 mm
- Rapid traverse Z: 36 m/min, rapid traverse X: 18 m/min
- Enlarged 500L coolant tank with chip conveyor
- Turret coolant pumps: GRUNDFOSS CRK4-100/10, double stage, 3-12 bar with filters
- Coolant wash over spindles
- Air blow and coolant wash through sub-spindle
- Auto shut-off
Bsdpfx Adsyrb Tno Rewi
- 3-color stack light
- NT Nurse axes load monitor
- IEMCA MASTER 880 bar feeder, year 2003
- Set of toolholders and collet holders as follows:
Supplied with the machine:
4 external toolholders
4 dual opposed toolholders
6 boring bar holders
1 H32 cutoff blade holder
4 radial live toolholders (brand HEIMATEC)
4 axial live toolholders
1 Bellegrandi collet holder type MSCNT70-A6” for BA and BD series, size 70 (complete with mounting sleeves, main spindle side)
1 Bellegrandi collet holder type MSCTNR70-A5” for BA series, size 70 (complete with spring ejector, sub-spindle side)
Complete Hand Jaw set for the part unloader
