Muratec MT200

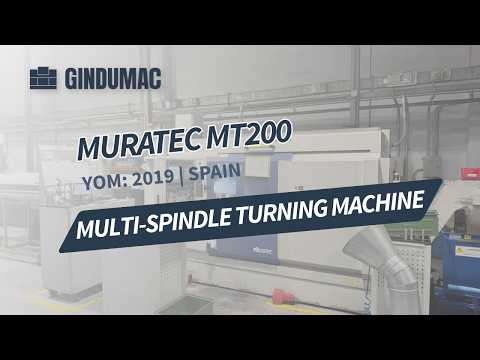

This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details.

• Chuck size: 210 mm (8 inch)
• Maximum swing: 205 mm (15 stations) / 228 mm (12 stations)
• Maximum bar capacity: 65 mm (standard) / 80 mm (option)
• Turret stations: 15 (upper and right) / 12 (lower)
• Bar diameter: 65 mm (Standard) / 80 mm (Option)
• Axis stroke (2-turret):
• Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm
• Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm
• Right spindle (Zs): 880 mm
• Maximum feed speed:
• X axis: 24 m/min
• Z axis: 36 m/min
• Y axis: 12 m/min
Bwsdpfxoyvuxye Anfew
• Live tooling motor: 14.0 kW max (4.8 kW continuous)
• Live tooling max speed: 4500 rpm
• Spindle positioning: C axis control (+/- 0.015 degrees)

Additional equipment

• Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option)
• Parts catcher capacity: 65 mm x 160 mm, 2.5 kg

Technical Specification
Counter Spindle Yes
