muetek MHB; MHZ

Consisting of large bale breaker Type MHB and straw shredder Type MHZ

1) Bale Breaker MHB:
Special price from €22,975 net (lead time approx. 15 weeks)

Suitable for round or square bales.
Includes frequency converter (FU) – regulates the speed of the chain conveyor.

The bales are placed on the chain conveyor, and the milling advance is activated. The milling tines tear the straw from the bale and hurl it into the hopper. Ideally, the combination of bale breaker and straw shredder is recommended here.

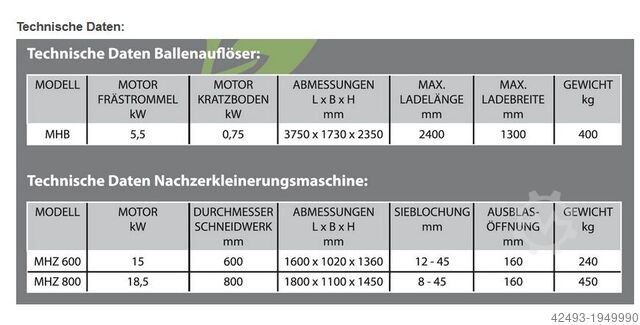

Technical data – Bale Breaker:
Performance: 1–2 bales per hour
Up to max. 600 kg per hour (depending on screen size used in the straw mill and kW rating of the straw mill). Without straw mill, the bale breaker can process up to max. 900 kg/h straw.

Max. square bale size: 2400 x 1200 x 800 mm (L x W x H)
Milling motor: 5.5 kW, 380 Volt
Chain conveyor feed: 0.75 kW, 380 Volt
Dimensions: 3750 x 1730 x 2460 mm (L x W x H)
Weight: 400 kg

2) Straw Shredder MHZ 600 – 11/15 kW; available immediately
Special price from €6,995 net

Surcharge for even larger straw shredder (18.5 kW): + €3,940 net

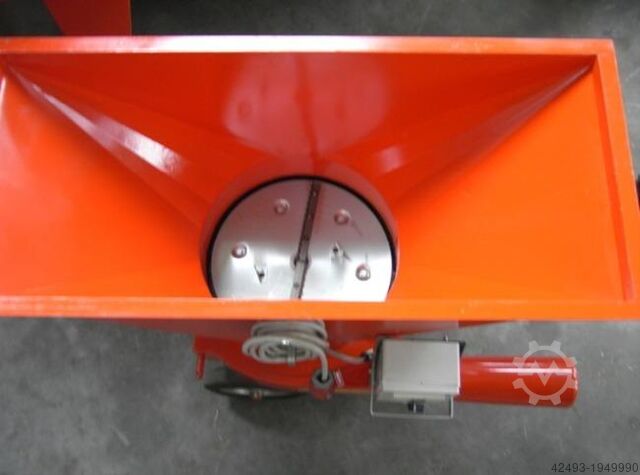

Technical data, MHZ with special hopper:
Motor: 15 kW, 380 Volt electric motor
Diameter: 600 mm
Hardened cutting knives
Screen with interchangeable inserts; selectable perforations (10, 12, 15, 22, 30, 45 mm)
With star-delta switch, phase protection, and 8 m power cable, plug-in ready
Discharge nozzle: 160 mm
Blowing distance approx. 12 m
Dimensions: approx. 1600 x 1020 x 1360 mm (L x W x H)
Weight: approx. 240 kg
Pgedpfx Aob Nulhjg Heg

---
Optional extras for a surcharge:

Feed auger: + €970 net

Cyclone (suspension by customer on site; should be no more than 10 m away):
+ €2,970 net

Simple filter: €1,750 net

---
Further options:

Industrial extraction system (demonstrator):
+ from €9,950 net

Optional rotary valve (renders material pressureless):
+ €5,750 net

Control panel: from €1,620 net

Special breaker extension 3 m (other sizes on request):
+ €9,750 net

Briquetting press MPP 180 S; little used demonstrator
70 mm briquette – up to max. 100 kg/h
from €39,700 net

* Larger machines available on request

---
Description:

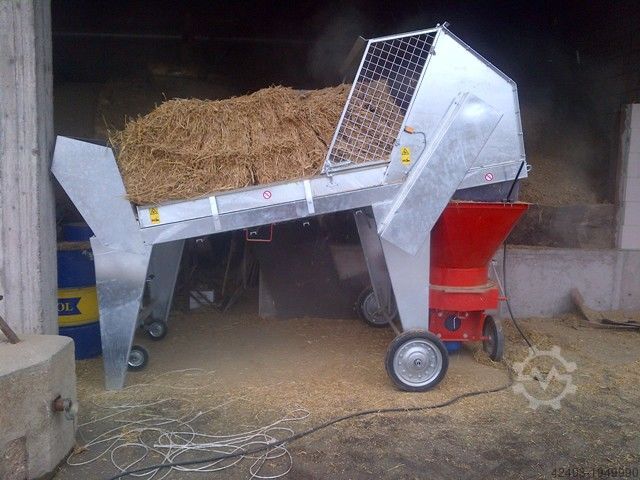

muetek bale breakers are designed for breaking up round and square bales of hay and straw. The shredder flanged to the bale breaker shreds straw from all types of cereals, hay, maize, and miscanthus. muetek machines of the MHZ / MHB series are characterized by robust construction and heavy-duty build quality.

muetek MHB series bale breakers feature a chain conveyor onto which the straw bale can be placed using a front loader. The support surface is adjustable depending on bale type.

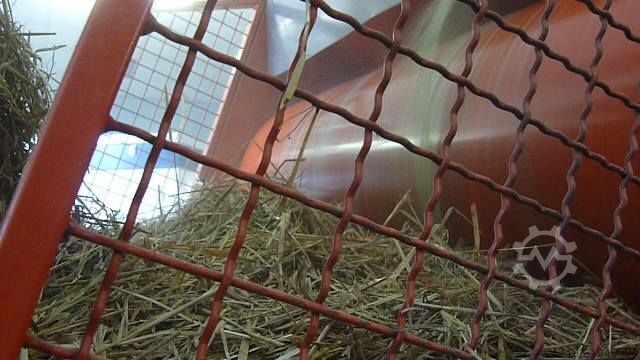

The chain conveyor pushes the bale against the milling rotor. The feed speed is adjustable. The milling rotor is equipped with several teeth that tear open the straw bale. The separated straw is discharged.

---
The machines are generally suitable for dry input material:
- Straw
- Hay
---

Breaking up hemp bales is possible only with a special breaker (surcharge approx. €9,720 net, depending on configuration).
Straw mill is not suitable for hemp processing.

Requirements for input material:
Max. moisture content 12%
