مركز خراطة وفريزة MAZAK - INTEGREX 200-4 ST

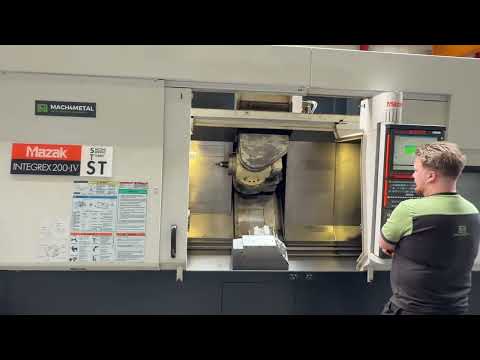

Mazak Integrex 200-4 ST

Multi-Tasking Machining in a Single Machine Setup
Sub spindle for overtaking with full C-Axis 0,001 Degrees
5500 Cutting hours !
The INTEGREX IV series can finish all machining processes.
High speed, advanced milling spindle that can tilt up to 240 degrees swiveling.
Lower turret with rotary tool spindle so livew tooling
Chip conveyor with coolant and 15 Bar iKZ
Double chuck KNCS-N 210-53 SMW Autoblock
MAZAK Flex -GL150F Gantry Loader
Gripping range 200 x 120 length x 15 Kg


Max. turning Ø: 660mm
X-Axis: 580mm
Y-Axis: 160mm
Gujdez Ar R Depfx Ap Ejg
Z-Axis: 1545mm
B Axis: 270°
Spindle bore: 65mm
Speedrange: 5000Rpm
Spindle power: 22kW
Subspindle speeds:5000Rpm
Subspindle bore: 65mm
Subspindle power: 18.5kW
ATC / revolver: 40
B-Axis Toolsystem:Capto C6
B-Axis Speedranges:12000Rpm
Length: 5200mm
Width: 2550mm
Height: 2600mm
Weight: 14000kg
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
