آلة الخراطة الأفقية

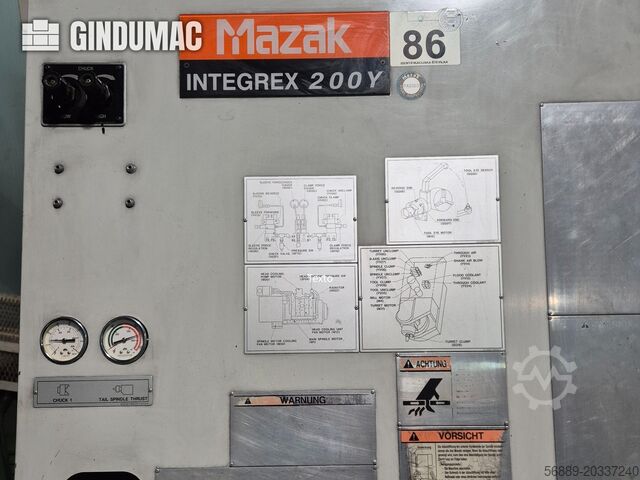

Mazak INTEGREX 200 Y

General Data
Measurements width 2105 mm
Measurements depth 3485 mm
Machine weight 7500 kg

Control Unit
Brand MAZATROL

Main Drive
Spindle speed range 3500–5000
Spindle bore 61 mm
Number of axis 4

Movement
X-Axis Movement 530 mm
X-Axis Feed Force 0–6000 mm/min
X-Axis Rapid Traverse 30 m/min
Y-Axis Movement ±70 mm
Y-Axis Feed Force 0–6000 mm/min
Y-Axis Rapid Traverse 15 m/min
Z-Axis Movement 1065 mm
Z-Axis Feed Force 0–6000 mm/min
Z-Axis Rapid Traverse 33 m/min

Tail Stock
Pinol diameter 80 mm
Pinol way 870 mm
Pinol tool taper MK4

Tools
Number of station 20
Kodpsxpyw Eofx Abxodu
Max weight 7 kg
Max tool diameter 90 mm
Max tool length 250 mm

This 4-axis Mazak INTEGREX 200 Y was manufactured in 2000. It features a maximum turning diameter of 540 mm, a swing diameter of 540 mm, and a bar diameter capacity of 51 mm. The machine supports a workpiece weight up to 150 kg and offers a spindle speed range up to 5,000 rpm. It includes a Mazak KM 63 quick change tool system with 20 slots. If you are looking to get high-quality turning capabilities, consider the Mazak INTEGREX 200 Y machine we have for sale. Contact us for more information.

Application Types
Turning
