Marpak IT30/2 + FT58

Complete packaging line, consisting of the following:

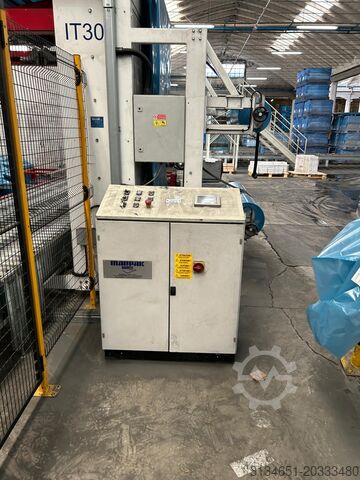

1. HOODING MACHINE MODEL IT30/2, DOUBLE REEL, STANDARD, FOR PALLETS WITH DIMENSIONS 600X800, 800X1200, 1000X1200.

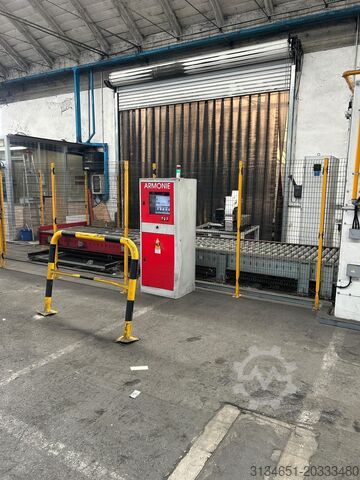

2. SHRINK TUNNEL MODEL FT58, SPECIAL, WITH SIX BURNERS, INCLUDING ONE MOBILE BURNER.

3. CONVEYOR SYSTEM

4. ELECTRICAL SYSTEM AND PERIMETER SAFETY FEATURES
Itodpfx Aboxpu Sksxsn

TECHNICAL DATA
-Pallet dimensions: 520X1850 (SHRINK TUNNEL ONLY)
600X800, 800X1200, 1200X1200 (SHRINK TUNNEL ONLY) 1000X1200 Max height: 1200 mm
-Hourly output: 30 packs/hour
-Installed power: 1.9 kW
-Air consumption per cycle: 40 Nl
-Film feed speed: 120 mm/sec
-Cycle time (with product height 1200 mm, excluding conveyor): 48 sec
-Maximum product height: 1200 mm
-Film thickness: 120-200 micron
-Reel size for euro pallet: 1380x480+480
-Reel diameter: 700 mm
-Electrical supply voltage: 230/400 V THREE-PHASE 50Hz
-Machine weight: 1200 kg.
