Used Isobaric Complete PET Line for Soft Drinks 6000 bottles/h


The line consists of:

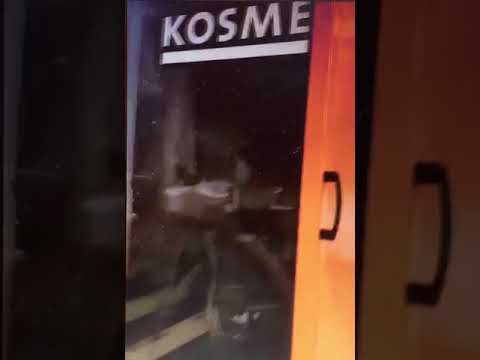

A Kosme KSB 4 L PET blow molding machine from 2004 with a speed of

Nsdpevguyaofx Ak Aect
6800 bottles/h for 0,5L,

6000 bottles/h for 2L,

5200 bottles/h for 2,5L


Air conveyor from blowing machine to filler.


MAS Mixer from 2004.


MAS rinser, filler and capper from 2004, renovated in 2015, capacity 0,5l – 10.000 palack/h, 1,5l – 5000 units, rinser cranes – 32 units, filling valves – 32 units, cork heads – 8 units.


BAT forum labeller type EBI 07 year 2006, capacity 1500-6500 units/hour, dimensions 2450x90x950-1300.


BAR forum packer year 2005, capacity 12 packages/min.


Conveyors, Cyklop International automatic stretch wrapper type GL215 year 2003, turntable 8 mm steel plate resting on 12 supporting rollers, feeder ramp 5 positions possible, power supply 230/440V, three-phase, 50Hz+Neutral; pallet load length/width max. diameter of 1675mm (*2000mm), pallet height – 2200mm (*2600mm), pallet weight max 1500kg (*2000 kg)
