Klemann Mobiscreen Classifier MSC 953i EVO

Mobile 3-deck screening plant | 4 fractions | Oversize discharge to the left
Year of manufacture: 2023
Operating hours diesel engine: approx. 1,050h
Theoretical feed capacity: up to 500 t/h
Feed hopper 8 m³ with folding grate
Dosing gate at feed hopper
Foldable/bar grate MSW100 (radio-controlled)
Feed conveyor GB= 1,200mm, smooth belt
Screen box with spacer frame
Currently without screen media
Screen equipment available according to requirements for an additional charge
Screening area upper deck: 6,100×1,550mm, cross-tensioned
Bodpfx Aaexqf Ulj Eswh
Screening area middle deck: 6,100x1,550mm, cross-tensioned
Screening area lower deck: 5,400×1,550mm, length-tensioned
Screen inclination: 20-30°
Vibration amplitude adjustable: 6 – 10 mm (depending on frequency)
3 material brakes on the upper deck
Fine material conveyor discharge height: up to 4,500mm (depending on screen angle)
Oversize side discharge conveyor (upper deck, left): discharge height 5,000mm
Middle deck side discharge conveyor (right): discharge height 5,000mm
Lower deck overflow side discharge conveyor (left): discharge height 5,000mm
Radio remote control for folding grate
Line coupling
Pneumatically assisted scraper on fine material conveyor
Dust suppression system with water pump

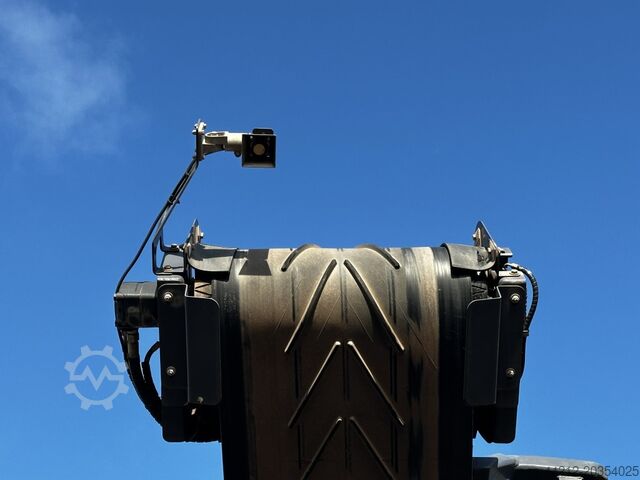

Stockpile monitoring via ultrasonic sensor
Hardwired control panel for plant operation
Lighting mast with 3xLED
John Deere diesel engine 4045 EWS with Stage V turbocharger
Power: 97.6 kW
Service at 1,000 operating hours = new
WITOS Fleetview
Transport dimensions (LxWxH): 18,310×3,200×3,400mm
Machine weight: 38,730 kg
