KÄSSBOHRER K.SOK Truck/Car Transporter, Novagrau

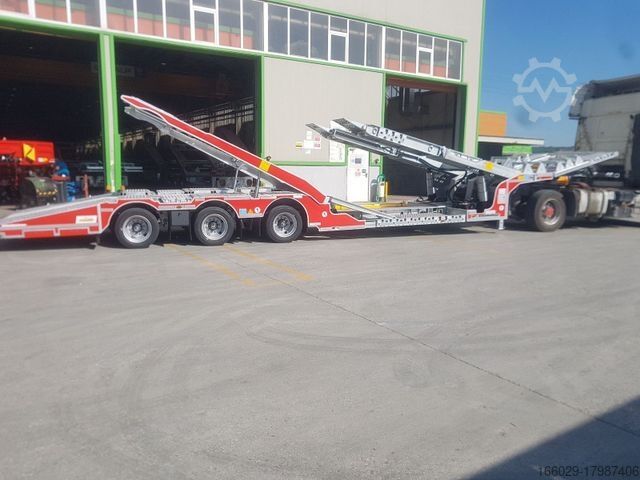

Kässbohrer K.SOK extendable truck/car transporter

Immediately available

TECHNICAL DATA:
* Outer length 13,200 mm
* Center distance 8,350 mm
* Overall width 2,550 mm
* 1,000 mm coupling height
* Axle load 24,000 kg
* Kingpin capacity 12,000 kg
* Unladen weight ±%3 11,145 kg
* Total weight 36,000 kg
* Vehicle extension 1,800 mm
* Bumper extension 1,200 mm

CHASSIS:
* BPW brand axles, 9,000 kg technical capacity with air suspension and drum brakes
* Last axle self-steering
* First axle liftable
* Wabco brake system

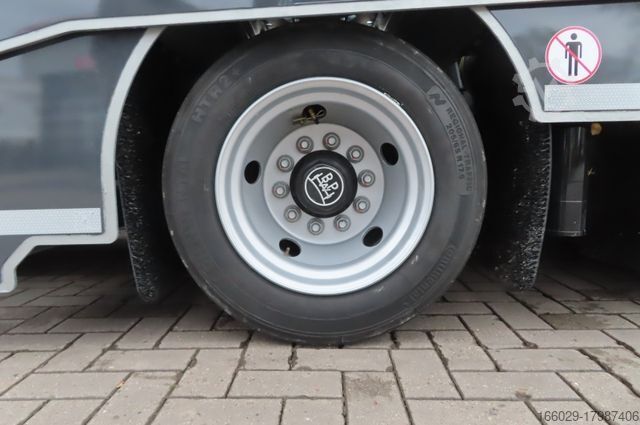

* 12-ply 205/65 R17.5 tires

CHASSIS:
* Made of high-strength steel

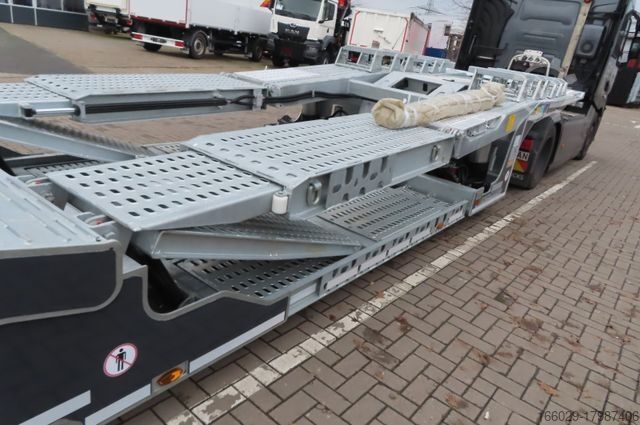

* Front ramp: 2 3,800 mm long, hydraulically folding and hydraulically sliding galvanized ramps (max. 1,000 mm extension angle between 2° and 15°) Load capacity 7 t
* Middle ramp: 2 pieces, 1,200 mm long, hydraulically folding, galvanized ramps (angle between 0° and 44°) Load capacity 7 t.
* Front axle ramp: 1 piece, 4,000 mm long, hydraulically folding, galvanized ramps (angle between 0° and 29°) Load capacity 7 t.
Crodpfx Ahovf S Irsxjh
* Loading ramp: 2 aluminium loading ramps measuring 2000 x 400 x 75 mm (L x W x H) with a capacity of 3.5 tons are available for loading the vehicles onto the truck transporter. The ramp angle is 10° with the rear bumper closed and 8° with the bumper extended
* Wheel recess in the size of 800 x 460 x 70
* Vehicle extension type 1,800 mm every 300 mm

LOAD SECURING:
* Lashing eyes are included, 1 x 2 pieces with 8 tons load capacity on the gooseneck, 2 x 2 pieces with 8 tons load capacity on the front ramp and 2 x 2 with 8 tons load capacity on the rear area

MISCELLANEOUS:
* Tool box made of aluminum 400x300x500 mm
* Color of the chassis: nova grey, galvanized

For further information please do not hesitate to contact us
