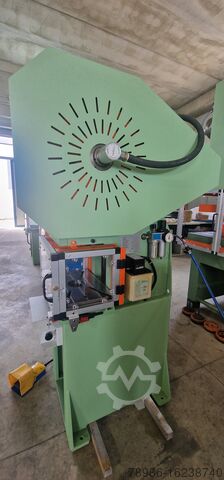

IMS T25

TECHNICAL FEATURES:
Press Model: T25-VE
Year of construction: 1996
Iedpfx Aottwfysg Uotb
Nominal force: kN 250
Free passage between the uprights mm: 220
Distance between the axis of the connecting rod and the uprights (notch) mm: 160
Dimensions of the mallet mm: 250x130
Worktable dimensions mm: 500x310
Minimum distance between worktable and mace with high adjustment
and mallet all the way down mm: 275
Mace adjustment mm: 50
Adjustable stroke mm: 0÷60
Shank hole diameter mm: 40
No. strokes per minute: 155
Engine power KW: 1.5
Total mass Kg: 950
Operating voltage V: 380
Frequency Hz: 50
Dimensions mm: H=1890; L=1000; D=980
Lubrication pump motor power Kw: 0.09

Complete with user manual and CE compliance
Warranty six (6) months excluding electronic parts.

NEW COMPONENTS INSTALLED:
- Front and side safety guards with safety keys;
- Motor bearings;
- Tang locks;
- Flywheel bearings;
- Flywheel belts;
- Work surface brightened on CNC machine
