آلة طحن صفائح الفولاذ المقاوم للصدأ

IMEAS 1992

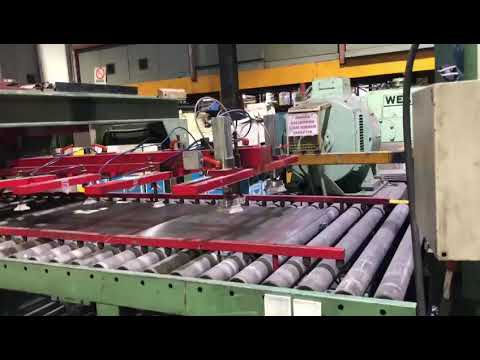

1992 Imeas Sheet Polishing Line

Main Control Siemens S5 Simatic,
electrical overhaul in 2017
Various Grades of Stainless Steel
Dwjdpfxjwbubfj Aflof
Pneumatic Sheet Loader (6m x 1m; 200kg capacity)

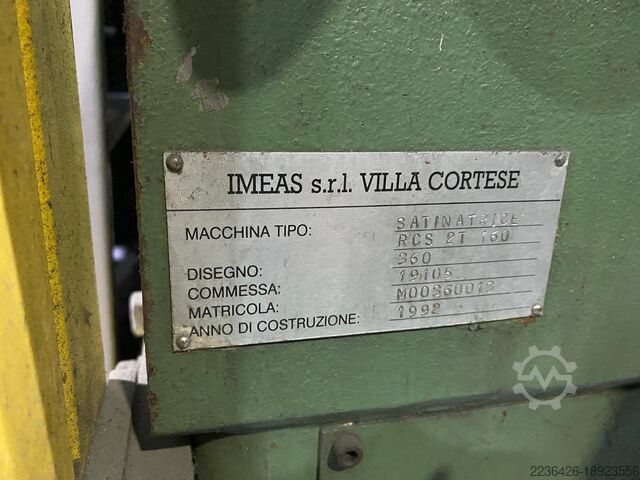

RCS-2T/160 Satinatrice Twin Station Belt Polishing Unit (reconditioned 2018)
SMS-2T/160 Twin Brushing Unit (2 new brushes)
Plast/f/catrice PL/160 Film Application Unit
Pneumatic Sheet Stacker and Run out Roller Table (6m x 1m; 200kg capacity)
Take off Roller Conveyor
Existing Protection Fencing around the Line
Qty. of misc. Spares including chrome pressure roll for brushing unit, replacement polishing belts & brushes etc.
Option of Large Dust Extraction fan set
Min. Input Width [mm] 600 Max. Input Width [mm] 1500 Min.
Output Width [mm] 600 Max. Output Width [mm] 1500 Min.
Thick. [mm] 0.4 Max. Thick. [mm] 3 Min.
Length [mm] 1000 manual / 1250 auto
Max. Length [mm] 6000 manual / 3000
Auto Coating foil
Max line speed [m/min] 15 Burr (depending on Thickness) [%] EN 9445
