HOMAG weeke BMG 111

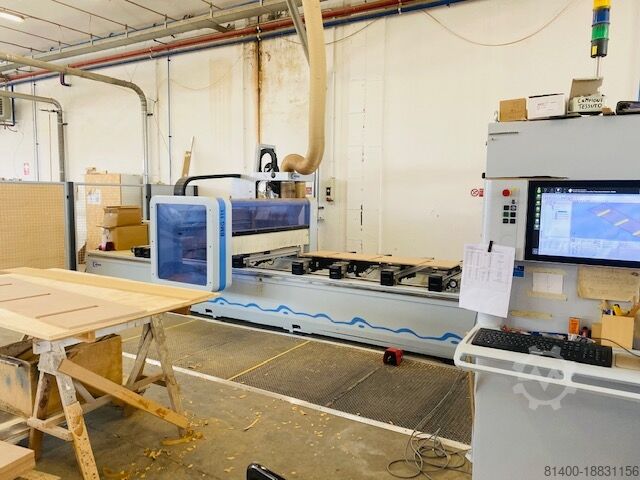

Homag Weeke work center Mod. BMG 111/45/12/K
Working range with electrospindle 4500 x 1550 mm
Cedev Tz Hyspfx Ag Sohc
Working range with all groups 4500 x 1250 mm
Drilling head with 12 vertical spindles 4+2 horizontal blade group 0/90
Electrospindle 9 Kw 12 Hp HSK rotation speed from 1250 to 24000 rpm
4 axis rotation aggregates
Circular 8-position tool changer
Lateral 8-position tool changer
Side tool change pick-up
Special aggregate FLEX 5 HIGH PERFORMANCE drilling milling sectioning
Automatic tilt adjustment 0 – 100
Shavings transport device ejection to the right
8 Schmalz work surfaces 16 suction cups
Laser suction cup positioning
2 vacuum pumps

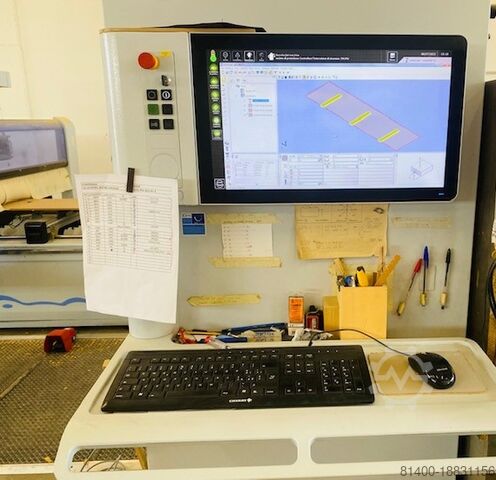

Control POWERTOUCH
Woodwop dxf import
Teleservicenet assistance
CE regulation
Year 2014
