آلة ربط الحافة

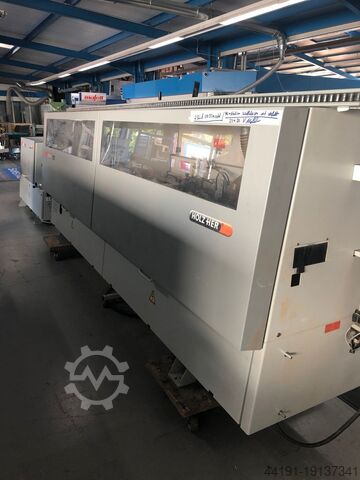

Holz-Her Sprint 1312

Used machine

Year of construction 2006

completely overhauled

with new glue application system

Equipment:

Cedpfx Agowka H Se Sohc
- Manually adjustable infeed guide
- Trimming unit 1961
- Edge feeder 1903
- Glue application station 1906 with touch-sensitive nozzle
- Pneumatic printing unit 1816
- Snipping unit 1822
- Trimming unit 1942 M radius, chamfer, flush
- Blowing nozzle complete
- Scraper unit 1929
- Chip catcher box
- Surface scraper 1964
- Extraction hood set
-- Complete protective hoods

Technical data:

Total length: 5291 mm
Workpiece thickness: min. 6 / max. 50 mm
Edge band thickness depending on assembly: 0.4-5 mm
Max. edge band height: 55 mm
Edge band length strips: min. 350 mm
Edge band protrusion/height per side: max. 3 mm
Workpiece width: min. 60 mm
Workpiece length: min. 180 mm
Feed speed: 12.5 m/min.
Extraction:
Joint trimming unit: 900 m³/h
Milling unit: 280 m³/h
Scraper unit: 280 m³/h
Static negative pressure:
Joint trimming unit: 1490 Pa
Milling unit: 1650 Pa
Min. air speed: 20 m /sec.
Milling unit connection diameter: 70 mm
Scraper connection diameter: 70 mm
Compressed air: 6 bar

Availability: approx. 2-3 weeks after receipt of order
Location: Hochheim Hochheim
