HOLZ-HER 6120

On offer:

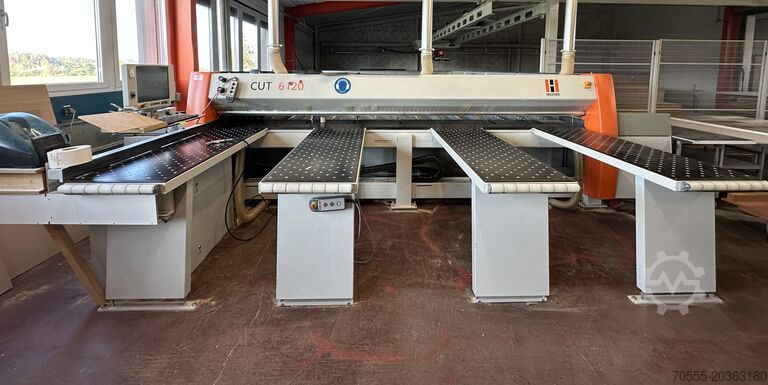

High-performance HOLZ-HER CUT 6120 power – the ideal solution for precise and economical panel cutting.
This machine stands out with its robust construction, excellent cutting quality, and user-friendly operation.
Thanks to a cutting length of 6,500 mm and a 15 kW main motor, it is perfectly suited for operations with high material throughput and stringent quality requirements.

Technical specifications:

Cutting length: 6,500 mm
Cutting height: 95 mm
Main saw: Ø 380 mm, 15 kW, belt drive
Scorer: Ø 180 mm, 2.2 kW, electrically adjustable
Speed: 4,070 rpm (optionally 1,000–5,000)
Feed rate: 0–100 m/min
Return speed: 130 m/min
Pressure beam: pneumatic, programmable
Tables: air cushion tables across entire working length
Control: HOLZ-HER CUTCONTROL 2 with EASY-PLAN and OPTI-CUT

Equipment and features:

- Torsion-resistant machine frame with hardened V-guides
- Electronically controlled saw carriage with automatic cutting length limitation
- Dynamic grippers with double-finger clamps for 3 strips of 80 mm each
- Pneumatic angular presser up to 1,300 mm, pre-positionable
- Offcut function without waste
- Postforming unit optional (up to 50 mm material)
- Automatic lubrication optional
- Air cushion tables with high-performance blowers
- Digital networking via HOLZ-HER HHPDE
- Software: EASY-PLAN, OPTI-CUT, OPTI-PRO
- 17″ TFT touch display (optional 19″)

Performance features:

Lodpfoxqq Spsx Abxjah
- Precise and clean cuts
- High productivity thanks to short cycle times
- Gentle material handling
- Simple graphical operation
- Low-maintenance and robust

Condition: Excellent, well maintained, immediately ready for operation

Special feature: Largest configuration in the CUT-6120 series with 6.5 m cutting length, 95 mm cutting height, and 15 kW main motor. Ideal for high production volumes and precise cutting to size.
