مركز تشغيل بثلاثة محاور

HERMLE C 600 V

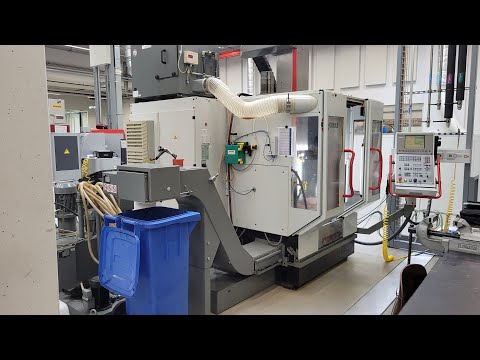

HERMLE C 600 V is a 3-axis machining center, engineered for precision, high accuracy and reliability. Table 800×465 mm, travels X 600 / Y 450 / Z 450 mm, table load max 200 kg; tool changer 30 stations, spindle taper HSK‑A63. Spindle 20–16,000 min⁻¹, spindle power 15 / 10 kW; feed 1–30,000 mm/min, rapid 35 m/min, max feed force 6000 N. Supply 3×400 V 50 Hz, total power 35 kVA, weight ≈6800 kg, size 2500×2020×2750 mm, noise 78 dB(A). Coolant through spindle 40 bar. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, tooling.
