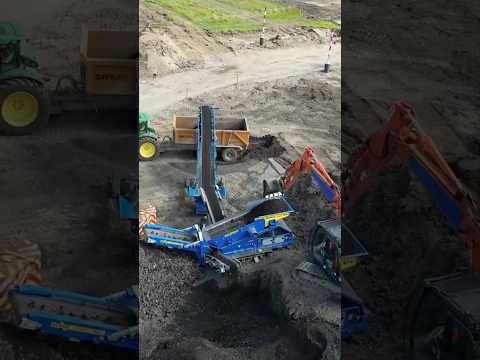

Herbst S72 KOMPAKTE SIEBANLAGE

The compact screening plant is equipped with a powerful 2-deck screen box.
The hydraulically folding conveyor belts and the unique compact design make it possible to
it,
Ksdpfx Ageum I Hpj Uodg
that the screen can be folded up and transported very easily.
The aggressive screen box can process up to 180 tons / hour and can be used for a wide range of applications.
of
applications including recycling, demolition, crushed stone, sand and gravel, soil and compost.
compost.
The simple drive unit and hydraulics result in easy maintenance, operation
and maintenance.

Technical description:
* Deutz engine
* Dimensions feed hopper: 2200 x 1200 mm
* Dimensions upper screening deck: 2865 x 1200 mm
* Dimensions lower screen deck: 2430 x 1200 mm
* Key start
* Simple hydraulics
* Conveyor belts for fine and medium-fine products
* Discharge conveyor for oversized products
* Webtec for controlling the belt speed
* Screen mesh - 1 set of desired screen mesh / several combinations available
* Weight: 9,040 kg
* Transport dimensions: 8000 x 2200 x 2700 mm (lxwxh)
* 1 year warranty from start of operation
