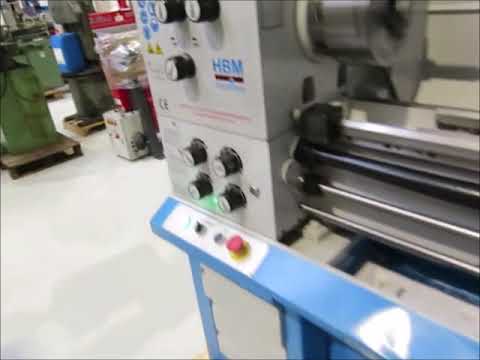

مركز مخرطة ومخرطة المغزل

HBM 400 x 1000 DRO

turning diameter over bed 400 mm
turning diameter over slide rest 264 mm
turning length 1000 mm
turning diameter in the gap 550 mm
turning speeds 44 - 2000 U/min
centre height 200 mm
spindle bore 52 mm
tailstock quill taper MT 4 MK
connected load frequency 400 V
total power requirement 1,5 / 2,4 kW
weight of the machine ca. 0,9 t
dimensions of the machine ca. 1,9 x 0,8 x 1,56 m
3-axis digital display
3-jaw chuck 200 mm.
4-jaw chuck 200 mm.
Faceplate 320mm
bezel fixed
running bezel
4-fold steel holder.
Halogen machine light
machine light
foot brake
removable chip tray, chip protection wall
Hardened and ground bed tracks
Iedpfxeupxrhe Af Hjal
Complete coolant system
lining protection
machine tools
