مركز تشغيل رأسي

HAAS VF-4 BHE 40 ATC

Machine Type:
Vertical Machining Center (VMC)
Podpoyfmttsfx Ag Aopl
Travels
X-axis: 1,270 mm (50")
Y-axis: 508 mm (20")
Z-axis: 635 mm (25")
Table
Table size: 1,321 × 495 mm (52" × 19.5")
Max table load: 1,587 kg (3,500 lbs)
T-slots: 5 slots, 16 mm
Spindle
Spindle taper: CAT 40 / BT40
Spindle speed: 8,100 rpm (optional 12,000 rpm)
Spindle motor: 30 hp (22.4 kW) vector drive
Drive type: Inline direct-drive
Coolant Through Spindle (TSC): 300 psi (21 bar) standard for TSC version

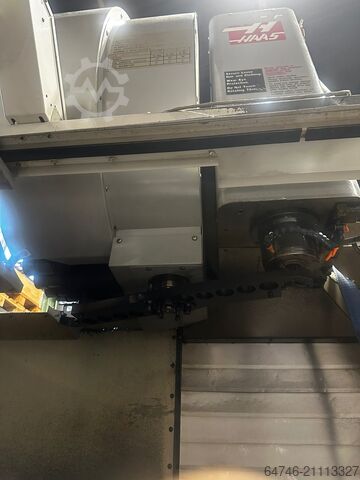

Tool Changer
Automatic Tool Changer: 40 tools (side-mount ATC)
Tool change time: ~2.8 sec (tool-to-tool)
Max tool weight: 5.4 kg (12 lbs)
Feedrates
Rapid traverse: 25.4 m/min (1,000 ipm)
Cutting feed: up to 16.5 m/min (650 ipm)
Accuracy
Positioning accuracy: ±0.005 mm
Repeatability: ±0.0025 mm
Control
Control system: Haas CNC Control
Memory: 1 GB
Networking: Ethernet / USB
Dimensions & Weight
Machine weight: approx. 7,100 kg
Footprint: approx. 4.1 × 2.8 m
Height: approx. 3.1 m

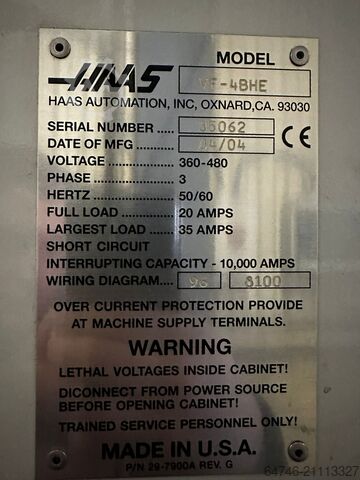

Electrical
Power requirement: 208–240 / 360–480 V, 3-phase
Air requirement: 6.9 bar (100 psi)
