GIS GIS SA150 Vakuumheber

Used stacker crane by GIS, designed for loading panel saws from a cantilever racking system. The suction head can be swiveled 90 degrees, allowing panels to be placed onto a vertical panel saw. This makes it possible for a single operator to load the saw without any physical effort.

Bedeympxbepfx Al Sjwr
Load capacity: 2 x 250 kg
Runway profile: GIS 1000
Runway length: 24.7 m
Crane girder profile: GIS 1500 reinforced
Span: 6.45 m
Crane girder length: 6.95 m
Travel speed: 20/5 m/min
Operating height from 4.08 m, currently configured with hangers for a room height of 4,500 mm with a 50 mm floor clearance. Height can be shortened if required.

The stacker crane is fully dismantled and stored at our premises.

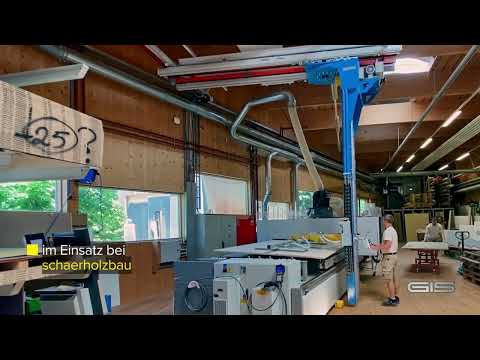

The attached video is from GIS, showing the current successor model that is still available for purchase.
