Genox J1200

Genox J1200 Series - Heavy Duty Horizontal Four Rotor Shredder suitable for processing long lengths of material i.e. pipe, profiles etc.
148kW combined shaft motor power (4 x 37kW) and an 18.5kW hydraulic power unit for the material feeder. The machine is equipped with heavy duty oversized gearboxes giving an 80rpm shaft speed.

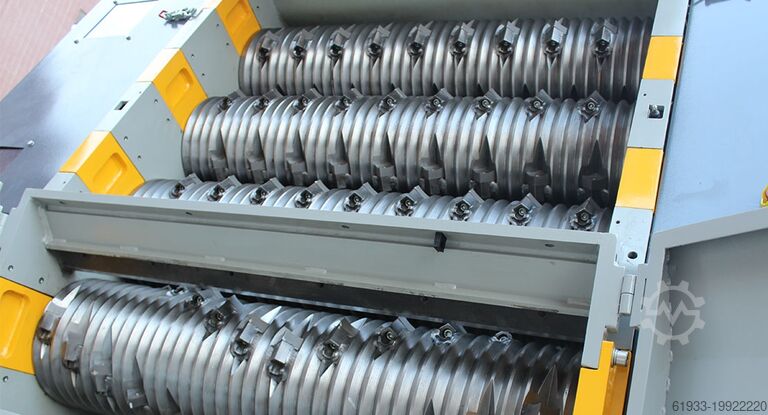

Four 1200mm wide x 390mm diameter rotors with 150 pcs of blades in total. The blades are 40mm concave reversible design manufactured from high quality, heat treated alloy steel.
Cedpfxsw U Ulpe Ahxerh
Material force feeding is regulated according to motor loading to achieve optimal throughput. These parameters can be easily configured on site to suit the materials being processed.
Output size is controlled by a replaceable screen mounted beneath the lower rotor shaft, the size of which can be determined to suit the application.
We also manufacture an 800mm version of this machine along with twin rotor and twin shaft (shear rotor) machines. Please contact us for more information and/or to discuss your requirements.
