طاولة مستديرة - غير مستخدمة

FIBRO NC1.

Technical details:

table diameter: 1000 mm
table height: 75 mm
max. table load: 250 kg
weight of the machine approx.: 1128 kg
dimensions: Aggregat: L: 1400 x B: 1000 x H: 160 mm

1-axis NC rotary table - horizontal
Positioning and rotary machining mode; intermittent operation
with 8 star-shaped T-slots according to DIN 650: a=18H7; h=31mm; b=31mm; c=13mm x length 380mm
Finished surface
Overall height 250mm
Turning:
Rotation 360°, by means of incremental encoder, speed 2160°/min.
Angular acceleration 120°/sec.²; positioning time 0.867 sec., speed max. 6 rpm, machining 1 rpm.
Load on indexing plate axial max. 100kN, radial max. 115kN;
Torques tangential 14,000 Nm as well as worm gear 7,000 Nm and circular machining 2,700 Nm

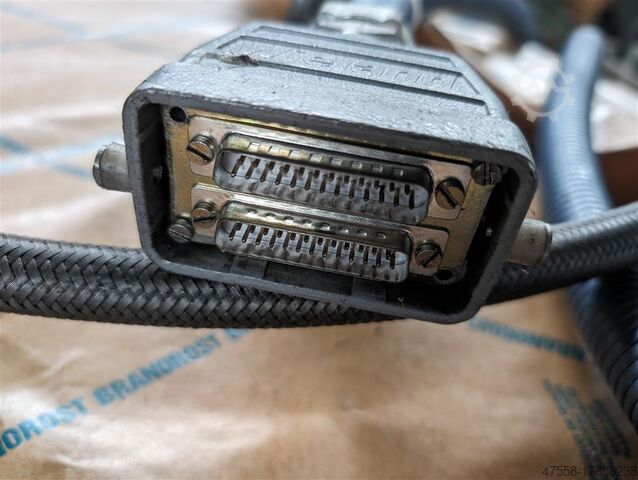

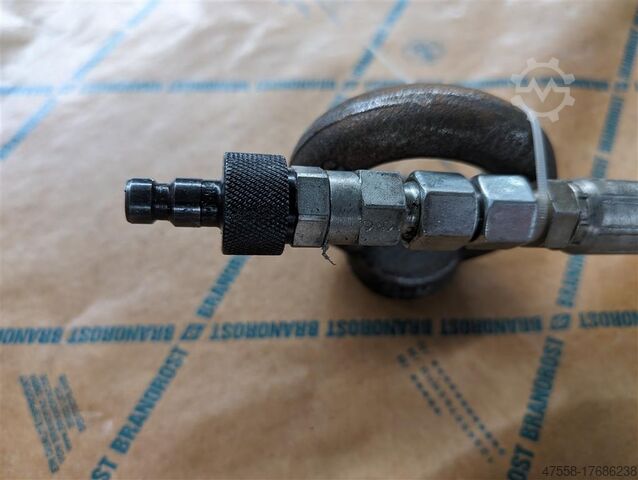

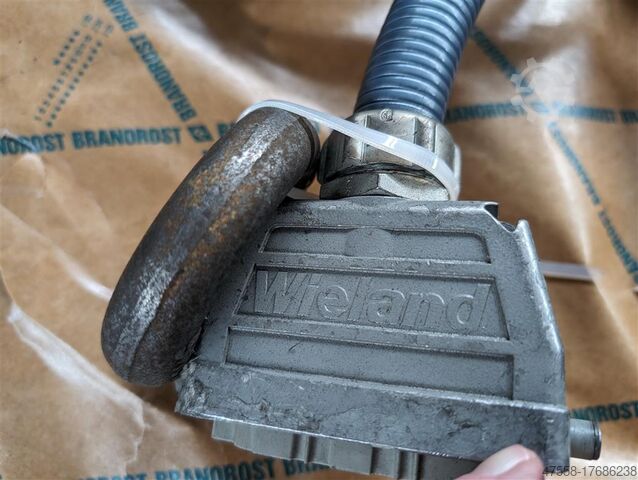

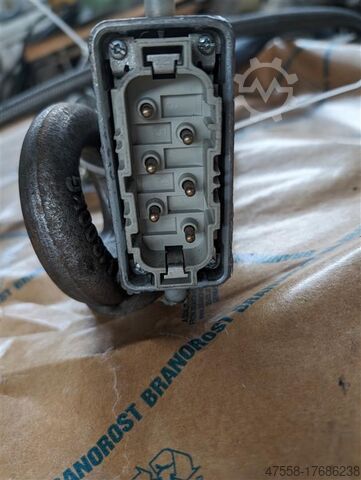

Measuring system Heidenhain - RON 886 C type connections (2x G 1/4" and 2x G 1/8")

*
