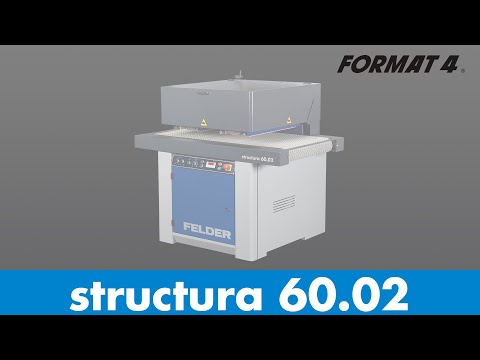

Felder structura 60.02

Further technical data

Grinding height: 3 mm - 200 mm (250 mm)
Grinding width: 650 mm
Extraction connection: 2 x 120 mm
Feed speed: infinitely adjustable 2.5 - 10 m/min

Standard equipment
- Maintenance interval control
- Plain text error messages
- Constant infeed height – fixed table, 900 mm
- Electric height adjustment incl. fine adjustment from the control panel
- Feed speed steplessly adjustable from 2.5 to 10 m/min via inverter at the control panel
- Endless belt conveyor
- Automatic feed mat centering
- 1st brush unit with selectable steel brush, counter-rotating operation, mechanically preloaded rubber pressure rollers, 1 motor with 4 kW and cutting speed of 1000 rpm
- 2nd brush unit with Tynex brush K60 D=200mm, counter-rotating operation, mechanically preloaded rubber pressure rollers, 1 motor with 4 kW and cutting speed of 1000 rpm
- Dimensions: 1455 x 1070 x 1250 mm
- Required air pressure: 6 bar

Optional equipment
022 7.5 HP (5.5 kW) motor power, 1st unit
Cgodpfx Asw Axi Asd Rop
024 7.5 HP (5.5 kW) motor power, 2nd unit
027 Oscillation control for 1st and 2nd brush units
028 Opening height 250 mm instead of 200 mm
