آلة اللكم موقف مزدوج

ERFURT PE4-HS630FS/E

pressure 0630 t
stroke 300 mm
no. of strokes 10- 75 Hub/min
table-size 3600 x 2200 mm
passage width 4000 mm
ram surface 3600 x 2200 mm
column travel -side 2000 mm
ram adjustment 150 mm
shut height (stroke down, adjustm. up) 1000 mm
voltage 400 V
Kledpfswx R Rdox Ag Uel
height over floor 7600 mm
Depth of Press under floor 2500 mm
total power requirement 160 kW
weight of the machine ca. 225 t
dimensions of the machine ca. 750 m²

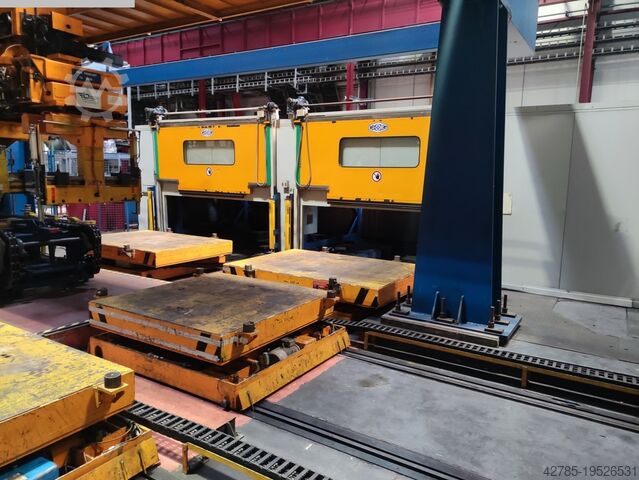

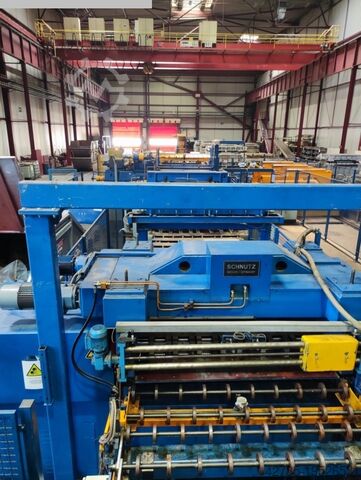

Complete feeding line comes with the machine. It works on a material width of
300- 1600 mm and a thickness of 0,5- 3 mm. Machine has two working tables which
move in and out to the front. To the side machine has a stacking device with
two pallets. It also has two stacking pallets to the backside. Machine has a
Coil charging device of 3 Coils with 25 t, a decoiler Schnutz, a material
feeder, a straightening machine and a roll feeder.
