ماكينة القولبة بحقن البلاستيك

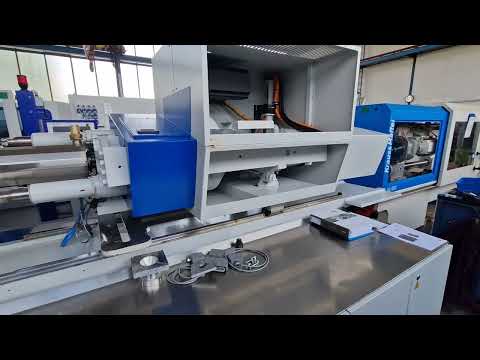

ENGEL e-motion 440-160

ENGEL e-motion 440-160

Stock No.: 503676
Manufacturer: ENGEL
Type: e-motion 440-160 T
Control: CC300
Year of manufacture: 2018
Operating hours: 33526 h

Technical data, clamping side
Clamping force: 1600 kN
Tie bar spacing h x v: 520 x 520 mm
Platen size h x v: 760 x 760 mm
Minimum installation height: 375 mm
Maximum installation height: 600 mm
Maximum platen spacing: 1060 mm
Opening stroke: 460 mm
Ejector stroke: 150 mm
Ejector force: 40 kN
Centering of moving platen D: 160 mm
Centering of fixed platen D: 160 mm
Tool weight: 1250 kg

Technical data, injection side
Screw diameter: 40 mm
Displacement: 220 ccm
Injection pressure: 1940 bar
Screw length: 24 l/d
Screw stroke: 175 mm
Screw speed: 420 min
Screw torque: 605 N
Plasticizing rate: 33 g/s PS
Free injection rate: 224 g/s PS
Number of heating zones: 4
Nozzle stroke: 305 mm

Dimensions & Weight
Machine dimensions L x W x H: 6.75m x 2m x 2.42m
Total weight: 8500KG

Equipment
Screen text in German
Screen text in English
CEE socket 32A
Hydraulic core pull, 2x
Hydraulic core pull unit
Air valve 1x
Machine with water manifold
Machine without material hopper
Machine without suction conveying system
Pneumatically operated needle shut-off nozzle
Leveling elements
EUROMAP 63 interface
EUROMAP 67 Handling interface
Interface for ejector plate locking
Hjdpfjz A S I Tex Ap Aont
Schuko socket 10A
