مخرطة عمودية

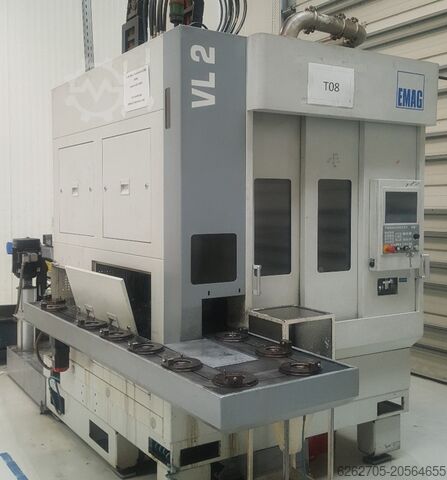

EMAG VL 2

Technical characteristics:

Work Area
Dujdpfoxw Srkjx Ab Uol
- Maximum diameter of the clamping plate: 160 mm
- Maximum turning diameter: 160 mm
- Maximum machining diameter: 100 mm
- Maximum workpiece length: 150 mm
- X-axis travel: 700 mm / Rapid traverse in X: 60 m/min
- Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min
- Standard enclosed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85))

Main Spindle
- Spindle interface according to DIN 55026: Size A5
- Maximum speed: 6000 rpm
- Power at 100% / 40% duty cycle: 18.1 / 13.9 kW
- Torque at 100% / 40% duty cycle: 77 / 59 Nm

Tool Holder with Motorized Tools
- Tool holders with cylindrical shank according to DIN 69880: 12 - BMT65
- Number of stations: 12
- Maximum tool length including holder: 190 mm
- Maximum speed: 6000 rpm
- Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm

Electrical Equipment
- Operating voltage: 400 - 480 V, 80 A
- Connected load: 27 kVA

Dimensions
- Total dimensions: Length = 4350 mm with chip conveyor, Width = 1600 mm, Height = 2500 mm
- Weight: 5500 kg

Main Features and Capabilities:
- Vertical Design: Enables optimal chip evacuation and easy loading/unloading.

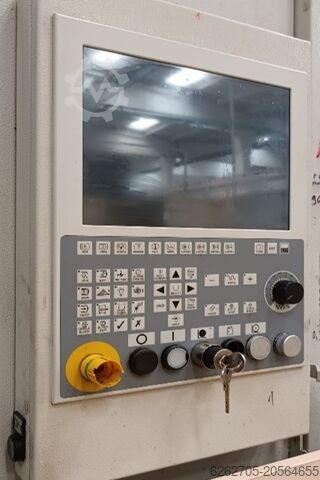

- CNC Control: GE Fanuc FS 32i B.
- High Precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales.
- Main Spindle: High power and wide speed range.
- In-process Measurement: Equipped with Marposs T25 measuring probe.
- Automated Loading/Unloading: Integrated automation for part loading and unloading.
- Live Tooling: Capability for driven tools expands machining to drilling and milling operations.
- Tool Life Monitoring: Sister tool management for tool life tracking.
- Chip Conveyor
- Fully Enclosed Work Area with Work Area Lighting
- Documentation: Electronic available; hardcopy/incomplete book.

Machine Status:
NOT OPERATIONAL
- Cooling pump x2 units
- Live tool drive motor
- Lubrication pump
- Operator panel - touchscreen needs replacement
- Hydraulic block valves x3
- Hydraulic loading door cylinder
- Rotary joint
- Lubrication pressure switch
- Safety door, Euchner type
