فرن تلبيد

ELINO FB-070/057/

CHARACTERISTICS HEAT TREATMENT EQUIPMENT
.. operation modus: continuous
.. heating method: gas+electric
.. Heating capacity: 225 kW
.. temperature max.: 1000 °C

HEAT TREATMENT COMPARTMENT / ZONE
.. length: 5750 mm
.. width: 650 mm
.. Height: 50 mm

ELECTRICAL SPECIFICATIONS
.. total power consumption: 230 kW
.. mains voltage: 400 V
.. mains frequency: 50 Hz


Application:
Production of friction linings for clutches
Sintering of steel, copper and brass powder materials onto non-ferrous metal/steel sheet
Cooling in an oxidation-free atmosphere

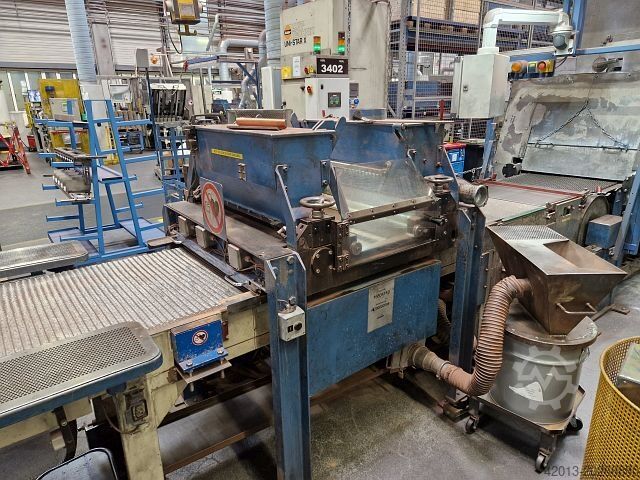

Complete system with powder application, furnace, cooling section, cleaning

Design:
Continuous furnace with belt conveyor with heating and cooling section
Fpsdexmt Rajpfx Abxon
Natural gas and electric heating

Heating temperature contro zones 6

Fuel gas (natural gas) approx. 5 Nm3/h
Purge gas N2 approx. 30 Nm3/h
Process gas H2/N2 60/40% approx. 40 Nm3/h

Electrical heating Zone 1: 2 x 27.5 kW
Zone 2: 2 x 27.5 kW
Zone 3: 2 x 27.5 kW
Zone 4: 55 kW
Zone 5: 5 kW
