آلة استقامة الشريط

DREHER 1676 BV

Ref. No.: Lg 35425

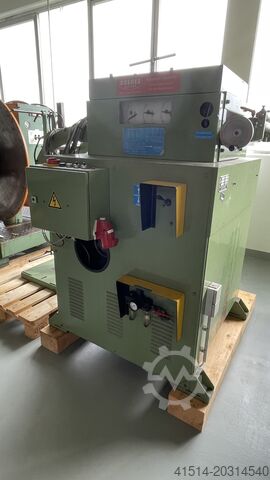

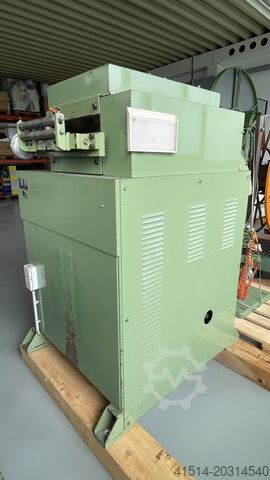

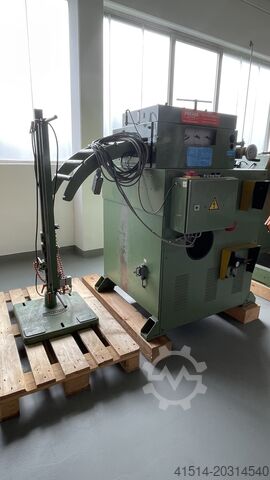

Strip Straightening Machine Dreher 1676 BV
Used, in good condition
Year of manufacture: 1991

Technical Data

Passage width: max. 300 mm
Material thickness: 0.8 to 4.0 mm
Max. material cross-section: approx. 800 mm²
Number of feed rollers: 2
Feed roller diameter: 80 mm
Feed roller release: pneumatic
Number of straightening rollers: 7
Straightening roller diameter: 80 mm
Adjustment of the upper straightening rollers: individually by hand
Number of exit rollers: 2
Exit roller diameter: 80 mm
Exit roller release: manual
Hnodpfx Aoxn Tqpsf Heg
Strip speed: approx. 0 to 30 m/min

Strip edge guide vertically at the inlet, centrally adjustable. Roller basket at the outlet for strip guidance.

Working direction: from right to left.

Speed steplessly adjustable via variable speed motor (manual).
Loop control via spring switch (start-stop).
