مركز الخراطة والطحن CNC

DOOSAN MX2600ST

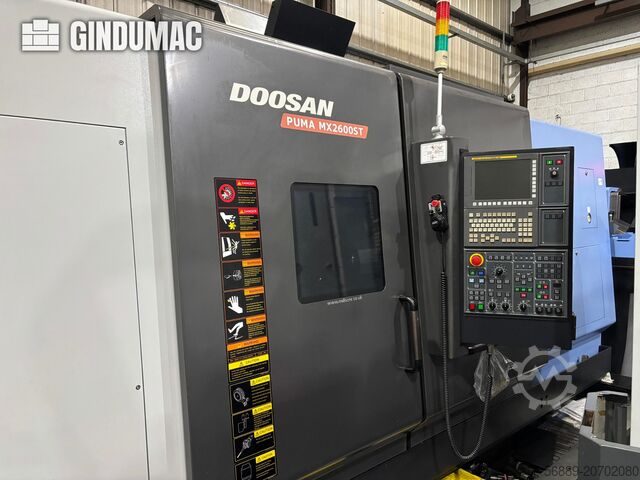

Doosan Puma MX2600ST
Fanuc 31i-A with Manual Guide i

Swing over bed: Ø 1000 mm
Max turning diameter: Ø 760 mm
Max part length: 1540 mm
Bar capacity: Ø 76 mm
Movement:
X1: 630mm
Z1: 1585 mm
Y: 230 mm (± 115 mm)
X2: 220mm
Z2: 1515 mm
A: 1550 mm
Left/right spindle:
Spindle speed: 4000 rpm
Spindle nose: A2-8
Spindle power: 22/26 kW
C-axis: 360° (0.001)
Milling spindle: 12,000 rpm
Spindle power: 15/18.5/22 kW
Spindle taper: Capto C6
B-axis: 0.001°

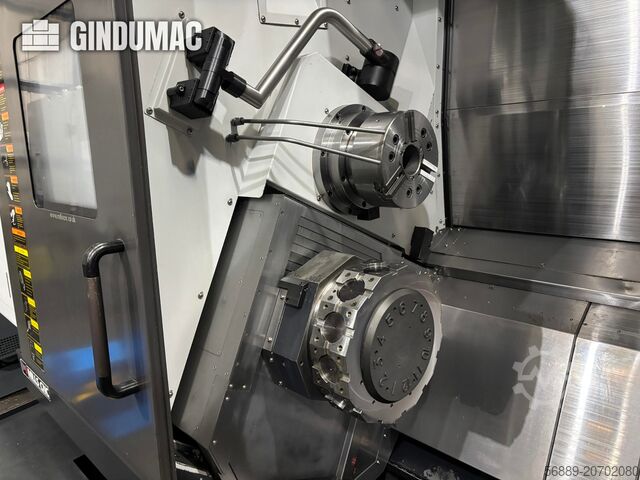

Lower turret: 12 stations, 4000 rpm, BMT65P
Cpjdpfsv Hyf Usx Addou
Tool magazine: 40 positions

Automatic tool measurement
Swarf conveyor
Coolant for driven tools
Coolant through milling spindle 1.5 KW , 2.0 MPA , 21.6 l/min
Coolant pump for lower turret 2.2 KW , 1.0 MPA , 30 l/min

Cutting force monitoring
